With the rapid development of the drug and medical industry, the consumption of the antibiotics became increase among humans and animals. It could cure lots of diseases timely and then avoided getting more serious sickness [1]. Until to now, there existed various kinds of antibiotic drugs, such as tetracycline [2], sulfonamide, β-lactam, quinolone and penicillin.

The large demands of the antibiotics prohibited people and animals from the infection of bacteria, therefore saves a lot of lives. However, for the ecosystems and natural environment, the following antibiotic pollution also needs to be paid much attention, which was caused by the discharge procedure. The persistence and difficult to degradation properties of the antibiotics will arise some serious environmental problems besides the severe water pollution, such as the emergence of drug resistance [3]. More seriously, the existence of the antibiotics in the water will be favorable for breeding antibiotic-resistant bacteria, posed threaten to the health of people and the effectiveness of the antibiotic drugs [5]. As a result, a lot of methods, which involves the adsorption, photocatalysis, biodegradation, electrochemical treatment and so on, were applied to tackle the mentioned issues effectively [6]. Photocatalysis technology, which possessed a green, effective, economical and environmentally friendly property, has received much concern from scientists. The solar energy conversion and utilization also boosted photocatalysis became one of the hottest topics among the past decades [7-14].

The application of TiO₂ in photocatalysis was popular since it was reported in 1972 [15]. It has a suitable conduction band and valence band position for both hydrogen production and pollutant degradation. Therefore, in the primary decades, researches were mainly focused on the TiO₂ as photocatalysts for antibiotic wastewater degradation [16-20]. Nevertheless, the drawbacks of TiO₂, such as the rapid recombination of photocarries, were also limited its industriousness applications. Additionally, it only could be responsible for UV light, which merely accounts for 4% in the overall solar spectrum. As a conclusion, scholars devoted themselves to explore and design novel photocatalysts to utilize the visible light, which occupied more than 40% ratio in the overall solar spectrum. Under this circumstance, sulfides, like CdS, have ignited the interests of the scientists [21-25]. Due to the S element contributed to the structure of the valence band, the bandgap was narrow thus could absorb the visible light effectively. However, this also weakened the oxidizing ability of the sulfides compared with the corresponding oxides. Furthermore, the stability also constrained its further applications. In 2009, Wang and co-workers initially reported a novel polymeric material, polymeric carbon nitride (PCN or g-C₃N₄), for photocatalytic hydrogen evolution [26]. In the past decade, due to its low cost, high efficiency and visible-light-responsible properties, g-C₃N₄ has become the hottest materials among photocatalytic field like water splitting, hydrogen evolution, antibiotic wastewater degradation, CO₂ reduction. Different from the sulfides, g-C₃N₄ showed a more stable structure than sulfides [27-32].

Past years have witnessed the development of the bismuth-based materials for photocatalytic hydrogen evolution and pollutants degradation [33, 34]. Different from the mentioned three main kinds of photocatalysts, bismuth-based materials, such as BiVO₄, Bi₂O₃, have suitable valence band position for visible-light-driven antibiotics degradation. The structure of [Bi₂O₂]²⁺ was beneficial for the formation of the internal electric field and therefore enhanced the separation efficiency of the photogenerated electrons and holes. This distinctive and superior property made the bismuth-based materials attracting the most extensive attention for photocatalytic antibiotic wastewater removal. For this reason, large of Bi-based photocatalysts appeared with a trend of bamboo shoots after a spring rain.

Recently, the idea of waste to energy has been proposed [35-38]. The wastewater, waste gases and even cellulose were used as the hydrogen sources in these researches. The results showed that photocatalytic hydrogen could be obtained with simultaneous waste removed. The waste in these studies played the role of sacrificial reagents, which provided a possible substitution for the traditional sacrificial reagents like methanol, ethanol. Similarly, antibiotic wastewater also could be used for hydrogen evolution. There were a few studies have reported the relative development of photocatalytic hydrogen evolution with simultaneous antibiotic wastewater degradation [39-44].

This review concentrated on the photocatalysis in antibiotic wastewater, including the degradation and hydrogen energy production. Furthermore, it also proposed some perspectives on the challenges and further development in the mentioned area.

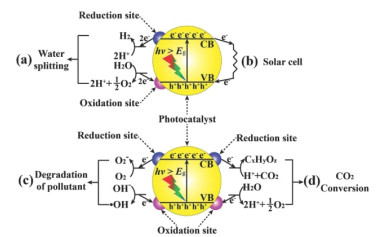

The procedure of photocatalytic hydrogen and degradation can be schematically described in Fig. 1. The whole procedure can be divided into three parts: (Ⅰ) With the irradiation of the incident light, the electrons and holes will be produced in the bulk phase; (Ⅱ) the photogenerated electrons and holes will migrate to the surface of the photocatalysts, a part of carries will be recombined in process; (Ⅲ) the photoelectrons will take part in the reduction reaction, like the evolution of hydrogen and ·OH. Simultaneously, the holes will take part in the oxidation reaction.

To achieve high efficiency of photocatalytic pollutant degradation and hydrogen degradation, there also some key points in this procedure. At first, the energy of irradiation light should be higher than the band gap of the photocatalyst. Otherwise, the photocatalyst will not absorb the irradiation light and further being induced to produce photocarriers. Secondly, the conduction band of the photocatalysts should afford the demands of hydrogen evolution or superoxide radical generation thermodynamically, which is 0 and ‒0.046 eV (vs. NHE, pH = 0), respectively. At last, similarly, the position of the valence band should be higher than the oxidation position of the pollutant, like antibiotics. More importantly, the ·OH radicals played an important role in contaminates degradation and the production of ·OH mainly originated from two pathways, one is from multistep reduction by photoelectrons as mentioned above, the other is the holes oxidize water (OH^-). The key issue of this mechanism also involves the thermodynamic demand, which requires the VB position should be more positive than 2.38 eV (vs. NHE, pH=0). That also explained the importance of producing superoxide radical. If the photocatalysts could not oxidize water (OH^-) to produce ·OH, the multistep reduction by photoelectrons to generate superoxide radical will provide another possible method to produce ·OH radicals. It will first initiate by e^- react with O₂ to produce ·O_2^‒, then the ·O_2^‒ will combine with H⁺ to generate ·HO_2^‒. Therefore, the H₂O₂ as the intermediate products will be produced. At last, ∙OH radicals can be evolved through the dissociation of the H₂O₂.

Due to the demands from the thermodynamics of photocatalytic degradation, the selection of photocatalysts plays an important role. Different materials have different CB and VB position, which will exhibit different performances in photocatalysis. Past several years have witnessed the exploration of photocatalytic antibiotic wastewater degradation. Simultaneously, the materials also experienced a crucial development process. As a conclusion, the materials can be classified into four types: TiO₂, sulfides, polymeric carbon nitride and bismuth-based photocatalysts. Furthermore, five kinds of antibiotics, tetracycline, sulfonamide, β-lactam, quinolone and penicillin, were studied as the model antibiotic wastewater normally.

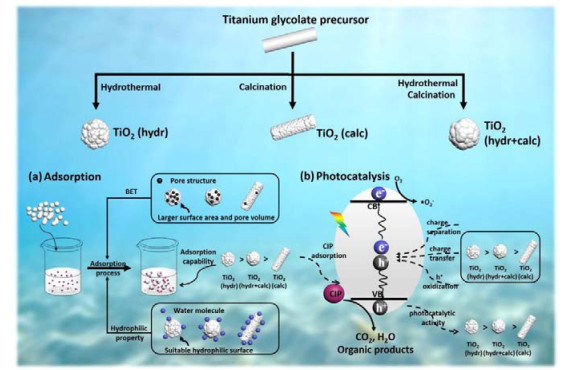

TiO₂ has gained more attention since it has been reported in photocatalysis [15]. The superior redox ability made it to be the most popular photocatalyst in the primary decades. The applications involved much researches filed, like hydrogen evolution, pollutant degradation. Correspondingly, in the photocatalytic antibiotic wastewater degradation, TiO₂ also ignited the interests of the scholars. It can be used for many kinds of antibiotic wastewater purification. Palominos and co-workers reported that the photocatalytic oxidation of the antibiotic tetracycline (TC) can be fulfilled via the TiO₂ under simulated solar light [16]. The degradation efficiency was higher than 90% after being calculated. There were also similar studies focused on the photocatalytic tetracycline wastewater degradation via TiO₂ [45-79]. Besides in the tetracycline systems, TiO₂ also exhibited an outstanding performance in sulfonamide, β-lactam and quinolone antibiotic wastewater degradation. For example, Beltran and co-workers found that TiO₂ could remove the sulfamethoxazole efficiently via an O₃/O₂ assistant method. As a result, 93% TOC removal could be reached [18]. Amoxicillin, ampicillin and cloxacillin can be served as the most common drugs of the β-lactam antibiotics. Elmolla's group reported that the mentioned three kinds of antibiotic wastewater can be degraded via TiO₂ under UV light irradiation in the presence of H₂O₂ [80]. Results showed that the complete degradation can be fulfilled after 0.5 h reaction for each pollutant. As a kind of quinolone antibiotics, levofloxacin has received much attention due to it may appeare in the discharged wastewater. Research on photocatalytic degradation of levofloxacin also became popular. For instance, as exhibited in Fig. 2, Gan and co-workers prepared TiO₂ via different methods and used for the photocatalytic degradation of levofloxacin. Results showed that the TOC removal rate of the CIP solution used TiO₂ (hydr), TiO₂ (calc), and TiO₂ (hydr + calc) was 76.66%, 57.07%, and 28.73%, respectively [81]. Additionally, for the removal of other kinds of drugs like chloramphenicol (a typical kind of chloramphenicol antibiotics), TiO₂ also showed a quantitative degradation of the organic molecule after 4 h of illumination, according to the previous report [82].

However, TiO₂ has a wide bandgap, which constrained it from absorb visible light thus only responsible for UV light. As is known to all, UV light only accounts for about 4% in the overall sunlight spectrum. The drawback limited the industriousness of TiO₂ deeply in future applications among antibiotic wastewater degradation. The visible light was occupied exceed to 40% in the overall sunlight spectrum. As a result, constructing the TiO₂ with visible-light-responsible ability could be a possible solving method. In conclusion, element doping was an efficient way. Chen and co-workers reported that the norfloxacin can be degraded under visible light with the C-doped TiO₂ [83]. Similarly, N, Ce and P-doped TiO₂ were also used for the visible-light-driven antibiotic degradation [84-86].

Other than designing the visible light responsible TiO₂-based materials, exploring the novel photocatalysts also provoked the attentions of scientists. Although the doping strategy could be a possible way to enhance the visible light absorption ability of the photocatalysts, simultaneously, it will decrease the oxidation or reduction ability thermodynamically. This is due to the doping will lead to the decrease of CB position and/or the increase of VB position of the photocatalysts. It was also the reason why the TiO₂ with an enhanced visible-light-absorption can be achieved. As a result, it was urgent to explore the novel photocatalysts which can be response to the visible light efficiently.

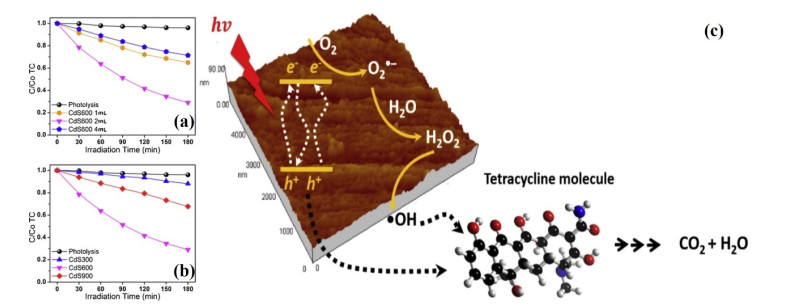

After being quested for many years, sulfides, like CdS, could be selected as the visible-light-response materials for the removal of the antibiotics under visible light. Many scholars have devoted themselves to the antibiotic's degradation via the sulfides under visible light. CdS was popular in the purification of the tetracyclines wastewater. Vázquez's group reported that tetracycline antibiotic can be degraded via the CdS [71]. The results showed that about 70% of drugs can be purified after irradiated for 3 h. The mechanisms and performances can be reflected by Fig. 3. Furthermore, the efficiency of the antibiotic degradation could be enhanced by the noble metal doping, like Ag doped CdS and ZnS, under visible light [87]. The reason could be ascribed to the enhanced surface Plasmon resonance effect. Except for CdS, other sulfides, such as CuS, In₂S₃ and Bi₂S₃, also have been used for the drugs photodegradation [75, 76, 87]. These results demonstrated that the sulfides could be acted as the efficient photocatalysts in the degradation of antibiotics-contained wastewater.

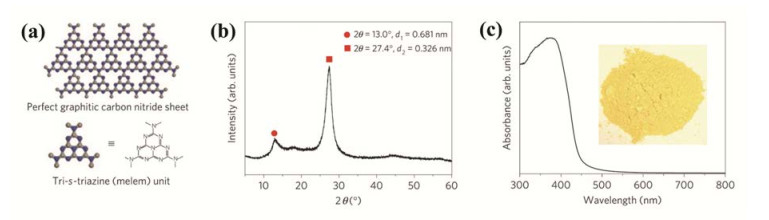

Polymeric carbon nitride, also was written as PCN or g-C₃N₄, was another kind of materials for visible-light-driven applications. It was reported by Wang and co-workers as well as used in photocatalytic hydrogen evolution initially [26]. It was indicated that the g-C₃N₄ has a bandgap of ~2.7 eV, the CB and VB also can afford the requirement of overall water splitting, as described in Fig. 4, which made it became more popular under the photocatalytic water splitting and hydrogen evolution in the past decades. Simultaneously, g-C₃N₄ also can be used for the photocatalytic degradation of the antibiotic wastewater under visible light. However, due to the negative position thus causing the weak oxidation ability, the pure g-C₃N₄ exhibited a low degradation rate. Therefore, scholars found that constructing the heterojunction between g-C₃N₄ and other semiconductors could be served as an effective method. For instance, Wang and co-workers synthesized the Bi₃TaO₇ quantum dots/g-C₃N₄ nanosheets 0D/2D Z-scheme composite heterojunction. The photocatalytic performances demonstrated that the ciprofloxacin can be degraded effectively under visible light. The 80% Bi₃TaO₇ QD/20% g-C₃N₄ exhibited the highest CIP degradation rate, which is 4 and 12 times faster than the pure Bi₃TaO₇ QD and g-C₃N₄, respectively [89]. The design of the materials and its photocatalytic results of the ciprofloxacin can be illustrated in Fig. 5. Other semiconductors, like Nb₂O₅, MnFe₂O₄, Ag₂O, MoS₂, Ag₂CO₃, ZnMoO₄ and Ag₂MoO₄, also can be used for the purification of the tetracycline, β-lactam and sulfonamide antibiotic wastewater [57, 65, 66, 77, 90‒92].

As mentioned above, the sulfides and g-C₃N₄-based materials could be played the role as the visible light responsible materials. However, the more negative position of VB determined that it could no be oxidize H₂O or OH^- to produce ·OH radicals directly, which needs the VB position more negative than 2.38 eV (vs. NHE, pH = 0). Therefore, sulfides and g-C₃N₄ have weak oxidation ability although both of them could absorb the visible light. The presence of ·OH radicals may be mainly relied on the multiple reduction of electrons, which will be facing the energy lost in the process and the production of ·OH radicals will be limited. The degradation process thus may be mainly caused by the holes direct oxidation and less ·OH radicals' oxidation, which exhibited a low degradation rate. In conclusion, to investigate the photocatalysts with both visible-light-responsible ability and a more negative position of VB will be more suitable for the degradation of the antibiotic wastewater degradation.

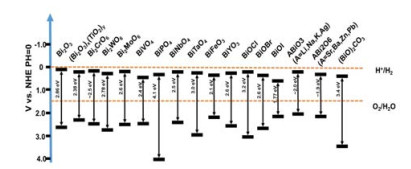

Under this circumstance, the bismuth-based materials have the potential to be the photocatalysts with high antibiotics degradation in wastewater. Our group has summarized the CB and VB position of the bismuth-based materials which used traditionally in photocatalysis, as demonstrated in Fig. 6 [93]. The results described that a part of bismuth-based materials could both absorb visible light and afford the thermodynamic requirement for producing ·OH radicals via oxidize water or OH^- directly. This special property makes Bi-based materials will be favorable for the degradation of the pollutants under visible light.

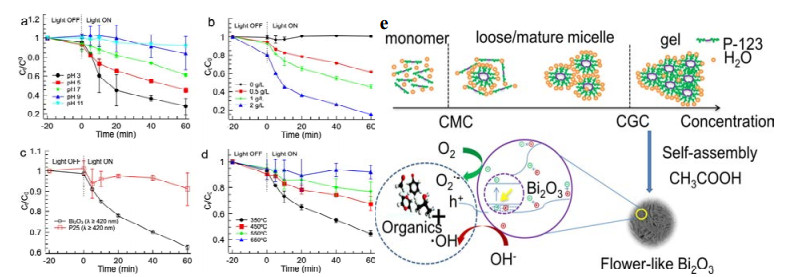

Scientist who dedicated to the wastewater treatment has accomplished the investigation of the bismuth-based materials for photocatalytic degradation of the antibiotic. Usually, bismuth-based materials can be mainly classified into four types: Bi₂O₃, BiVO₄, Bi₂MO₆ (M = W, Mo) and BiOX (X = Cl, Br, I). For these kinds of photocatalysts, there are many studies concentrated on the removal of the antibiotics. It was reported that hierarchical flower-like Bi₂O₃ has been fabricated successfully and applied to the degradation of sulfamethoxazole, as listed in Fig. 7 [94]. The reason can be ascribed to the narrow bandgap of Bi₂O₃ and more positive position of VB, which was facilitated to produce ·OH radicals for promoting the removal of sulfamethoxazole. For other sulfonamides, like sulfamethazine, Bi₂MoO₆ also could be applied to the degradation process as a photocatalyst [95]. BiVO₄ was recommended to have a high visible-light-driven performance in the degradation of ciprofloxacin [96]. Results showed that the rate of BiVO₄ was about four times higher than the P25 TiO₂ on the degradation of ciprofloxacin. Similarly, BiOBr also can be served as an efficient material for the ciprofloxacin degradation under visible light. Huang's group described the ciprofloxacin degradation was mainly relies on the holes oxidation directly due to the ·OH radicals attack pathway can be excluded [97]. Tang and co-workers reported that norfloxacin can be purified by Bi₂WO₆ under visible light. The HPLC-MS results described the pathway of the degradation process, which provided evidences for the elimination of piperazynilic ring in fluoroquinolone molecules by ·OH radicals [98]. The photocatalytic performances and possible degradation pathways of norfloxacin using Bi₂WO₆ was proposed and exhibited in Fig. 8.

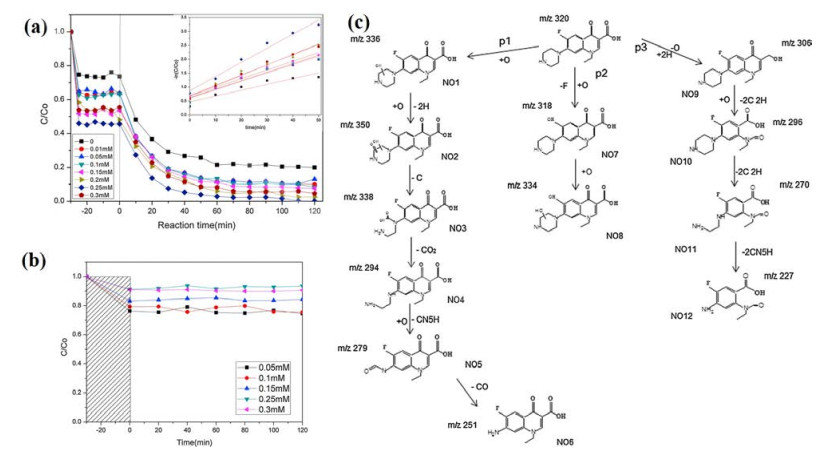

Compared with the single semiconductors as the photocatalysts, coupling-materials were more popular due to the formation of the heterojunction will be facilitated for the transformation of the photocarries thus beneficial for the enhanced drugs degradation. As a result, a majority of composite photocatalysts, like NiFe₂O₄ and g-C₃N₄ doped Bi₂O₃ [49] [63], Cu₂O, AgI, Ag₂CO₃, g-C₃N₄ doped BiVO₄ [46] [58] [62] [70], SnO₂, MnNb₂O₆, g-BN, metallic Bi, NH₂-MIL-125(Ti), Carbon Quantum Dots, AgI, Bi₂O₂CO₃, iron oxides and Bi₂O₄ coupled BiOX (X = Cl, Br, I) [47]50, 55, 56, 79, 99– [103], ZnO, g-C₃N₄ doped Bi₂WO₆ [78] [104], carbon quantum dots doped Bi₂MoO₆ [105], as well as AgI doped BiOIO₃ [106], have been synthesized successfully and used for the antibiotic wastewater degradation.

In conclusion, there were mainly four kinds of materials could be used for photocatalytic antibiotic wastewater degradation. All of them both have advantages and limitations. Whether it is suitable for degradation or not was determined by the oxidation potentials of the different types of drugs. We think that the relationship between the VB of photocatalysts and the oxidation potentials of the antibiotics should play important an important role in the photocatalytic degradation procedure. Furthermore, the ·OH radicals acted as another key issue. It could both originate from holes oxidizing water or OH^- directly and electrons multiple reduction methods.

Hydrogen was clean and green energy which was potential to be a substitute for the fossil energy to solve air pollution. Besides, photocatalytic technology was also an environmentally friendly method. Therefore, in recent decades, studies on hydrogen energy from photocatalytic overall water splitting have received much attention [107-122]. However, the solar to hydrogen (STH) efficiency was still low in the pure water systems. The rapid recombination of photoelectrons and holes may be an important reason. Therefore, the sacrificial reagents were added to consume the holes and prolong the life of electrons to produce hydrogen. Furthermore, the addition of the sacrificial reagents also will largely decrease the Gibbs free energy of the hydrogen generation reactions, which will beneficial for hydrogen evolution. Consequently, this method was popular due to it can improve the amount of evolved hydrogen largely. A quantum efficiency reached to 100% has already been proposed [123]. Additionally, a compound parabolic concentrator (CPC) for particulate photocatalytic hydrogen evolution has been designed and showed that hydrogen could be obtained with a productivity of 2.9 and 4.0 L/h every spring day and summer day of China, respectively [124]. Although these progress of producing hydrogen energy seem steps closer to the industriousness, the cost of the sacrificial reagents will be the hinder factor. Hence, it is necessary to quest for the less expensive sacrificial reagent. The solutions were focused on the pollutants acted as the electrons acceptor.

As discussed aforementioned, antibiotic wastewater was a kind of severe pollutants which was existed in wastewater. Applied antibiotic wastewater to hydrogen energy before it was discharged could be a novel insight in future research. It contains the strategy of waste to energy, which represents the sustainable theory.

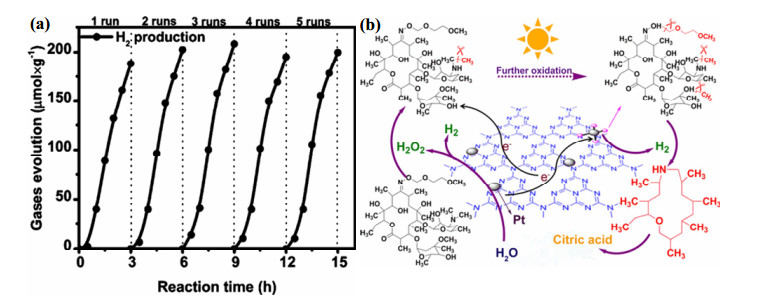

Since 2017, there were a few reports used different kinds of antibiotic wastewater to produce hydrogen. As a conclusion, three types of antibiotics have been proved to produce hydrogen via photocatalysis. Xu and co-workers have found the presence of poisonous macrolide antibiotics in the photocatalytic systems enhanced the H₂ yield while itself could be degraded simultaneously under visible light (λ > 420 nm), using g-C₃N₄ as the photocatalysts. Roxithromycin, Claricid, Kitasamycin as the model of macrolide antibiotics and the degradation pathways were explored by HPLC-MS, respectively. The performances and degradation pathways can be reflected in Fig. 9. Results of mechanisms exploration illustrated that the macrolide antibiotics player a role of sacrificial agent to consume H₂O₂ thus being degraded and simultaneous enhancing of the hydrogen yield [39].

Moreover, Nie et. al. [40] using the C₃N₄-based composite photocatalysts, grapheme quantum dots/Mn-N-TiO₂/g-C₃N₄ (GQDs/TCN), in a hydrogen evolution and antibiotics wastewater degradation system. The ciprofloxacin, which was a traditional quinolone antibiotic drug, was played the role of the sacrificial reagent in this research. Furthermore, the authors proved that the roles of ·OH radicals were crucial in the procedure of the degradation. The presence of antibiotic wastewater improved the evolved hydrogen amount compared with photocatalytic that in the pure water system. Additionally, the heterojunction between Mn-N-TiO₂ and g-C₃N₄ could be responsible for the enhanced photocatalytic performances. The two studies took the macrolide and quinolone antibiotic as the sacrificial reagents in a photocatalytic reduction simultaneous with oxidation systems, respectively. More types of antibiotics also need to be explored. Subsequently, their group constructed another g-C₃N₄-based composite, g-C₃N₄/Carbon-CdS di-quantum dots, for photocatalytic synchronous hydrogen with tetracycline antibiotic degradation. The results proved that tetracycline antibiotic drugs also could be acted as the sacrificial reagent [41]. Chew's group also chooses the tetracycline antibiotic as the sacrificial agents for photocatalytic hydrogen. The experiment results showed that both hydrogen evolution and tetracycline antibiotic degradation can be performed simultaneously using the g-C₃N₄ as the photocatalysts, as depicted in Fig. 10 0. Besides the g-C₃N₄-based materials for simultaneous hydrogen production with antibiotics wastewater degradation, other materials also can be utilized to produce hydrogen energy under the tetracycline antibiotic system. Shi's group synthesized the all-solid-state Z-scheme RGO-Cu₂O/Fe₂O₃ photocatalyst [43]. They selected the tetracycline antibiotic as the sacrificial reagent in their research. As a conclusion, the H₂ production using tetracycline over the composite showed eight times and five times higher than that in pure water and methanol systems under the irradiation of visible light (λ > 420 nm), respectively. The construction of Z-scheme heterojunction was favorable for the transformation of photocarries. The aforementioned reasons dramatically improved the hydrogen production efficiency.

Our group has initially applied the β-lactam antibiotic to photocatalytic hydrogen evolution. Amoxicillin, which was a common kind of β-lactam antibiotic drugs, was selected as the sacrificial reagent to fulfil the strategy of waste to energy under visible light (λ > 420 nm) [44]. The g-C₃N₄ was served as the photocatalysts and further being constructed with metallic bismuth to form Mott-Schottky heterojunction, which will enable the delocalization of electrons between metal and semiconductor and thus beneficial for enhancing photocatalytic performances. The photocatalytic experimental results demonstrated that hydrogen evolution was companied with amoxicillin degradation. The oxidation potential of amoxicillin was tested and the thermodynamics mechanisms indicated that the amoxicillin degradation can be ascribed to the holes direct oxidation. The degradation pathways also determined by the HPLC-MS method. The results also proved the hydrogen evolution simultaneous amoxicillin degradation under visible light.

In this mini-review, the photocatalytic degradation and conversion of antibiotics was summarized. Some photocatalytically widely used drugs were concluded and as well as the commonly used photocatalysts were also introduced. In the part of the photocatalytic degradation, TiO₂-based materials, bismuth-contained materials, sulfides and g-C₃N₄-based materials were the traditional photocatalysts in the removal of the antibiotics. The photocatalytic hydrogen evolution with simultaneous antibiotic wastewater degradation can be fulfilled. These studies proposed a new insight, which was from the antibiotic wastewater, to produce hydrogen. This is the first time the relative researches were summarized although it was rare. However, besides more visible light responsible materials also need to be explored, such as black phosphorous, there are also some limitations on the modern development about the photocatalytic degradation and utilization of antibiotics.

(1) In the photocatalytic degradation part, different types of drugs have different oxidization potential. Therefore, the VB position of the photocatalysts is very important because it determines whether the photogenerated holes could oxidize the drugs directly or not. Therefore, the test for oxidation potential of antibiotics will be necessary to clearly illustrate the mechanisms of photocatalytic degradation procedure. Furthermore, the products through holes oxidation directly and the ·OH attack may be different in the photocatalytic degradation process, which also needs further in-depth studies to prove;

(2) There also some limitations in the photocatalytic hydrogen evolution with simultaneous antibiotic wastewater degradation. Firstly, it is important to demonstrate hydrogen sources. Although the antibiotic played the role of sacrificial reagent, however, the hydrogen source is still ambiguous. Whether the antibiotics made contributions is important to prove the insight of the waste to energy. Secondly, the experimental conditions always performed at an anaerobic condition. However, normally, the pollutants can be hardly mineralized completely under an anaerobic environment. That determines the photocatalytic hydrogen energy should be performed before the degradation process. Thus, the byproducts under the anaerobic also need to be investigated.
