Light-driven activation of carbon-halogen bonds by readily available amines for photocatalytic hydrodehalogenation
Di Menga,b,†, Qian Zhua,b,†,‡, Yan Weia,b, Shengli Zhenc, Ran Duana, Chuncheng Chena,b, Wenjing Songa,b, Jincai Zhaoa,b
a. Key Laboratory of Photochemistry, CAS Research/Education Center for Excellence in Molecular Sciences, Institute of Chemistry, Chinese Academy of Sciences, Beijing, 100190, China;
b. University of Chinese Academy of Sciences, Beijing, 100049, China;
c. Beijing GeoEnviron Engineering&Technology, lnc., Beijing, 100095, China
* Corresponding author. Wenjing Song, Tel: +86-10-82615942; Fax: +86-10-82612075; E-mail: wsongunc@iccas.ac.cn
These authors contributed equally to this work.
Current Address: Beijing GeoEnviron Engineering & Technology, lnc., Beijing, 100095, P. R. China
This work was supported by the National Key R & D Program of China (2018YFA0209302), National Natural Science Foundation of China (21590811, 21677148, 21827809, 21922609), the Key Research Program of Frontier Sciences (QYZDY-SSW-SLH028) of the Chinese Academy of Sciences
Abstract: A straightforward protocol using readily available aromatic amines, N, N, N', N'-tetramethyl-p-phenylenediamine or N, N, N', N'-tetramethylbenzidine, as photocatalysts was developed for the efficient hydrodehalogenation of organic halides, such as 4'-bromoacetophenone, polyfluoroarenes, cholorobenzene, and 2, 2', 4, 4'-tetrabromodiphenyl ether(a resistant and persistent organic pollutant). The strongly reducing singlet excited states of the amines enabled diffusion-controlled dissociative electron transfer to effectively cleave carbon-halogen bonds, followed by radical hydrogenation. Diisopropylethylamine served as the terminal electron/proton donor and regenerated the amine sensitizers.
© 2020, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Carbon-halogen bond activation    Photocatalysis    Halogenated organic pollutants    Reductive dehalogenation    Environmental remediation
基于芳香胺化合物的光催化脱卤加氢
孟涤a,b,†, 朱倩a,b,†,‡, 魏燕a,b, 甄胜利c, 段苒a, 陈春城a,b, 宋文静a,b, 赵进才a,b
a. 中国科学院化学研究所光化学重点实验室, 中国科学院分子科学科教融合卓越中心, 北京 100190;
b. 中国科学院大学, 北京 100049;
c. 北京高能时代环境技术股份有限公司, 北京 100095
摘要:近年来,光催化活化碳卤键已经成为构筑新化学键的有力方法.其基本原理在于利用光激发产生的高活性激发态或中间物种,经由电子转移过程实现碳卤键的断裂产生碳自由基和卤离子(C-X+e- → C·+X-).碳自由基通过加氢或者或亲电进攻等途径完成反应,实现碳卤键到碳氢、碳碳等化学键的转化.目前已报道的用于活化碳卤键的光催化剂包括过渡金属(如钌、铱)配合物,过渡金属盐(CeCl63-)、有机小分子光(二氢苯二嗪、苯基吩噻嗪、苝酰亚胺以及芘类衍生物分子)等.本工作中我们开发了基于小分子芳香胺,包括NNN',N'-四甲基对苯二胺(TMPD)与NNN',N'-四甲基联苯胺(TMB)等作为光催化剂实现高惰性芳香卤代化合物脱卤加氢的催化体系.荧光强度/寿命测试表明芳香胺的强还原性单重激发态可通过扩散控制的电子转移实现惰性卤代底物(氯苯,六氟苯等)中碳卤键的解离;并且原位顺磁共振直接观察到了这一步骤产生的芳基自由基以及TMPD正离子自由基;自由基捕获实验也为解离电子转移活化碳卤键提供了进一步的支持.芳香胺分子在计量反应条件下可同时作为光敏剂和电子/氢给体可在紫外光照下(λ> 360nm)实现芳香卤代化合物的脱卤加氢,并表现出较高的转化率和选择性:溴苯乙酮(86%,90%)、六氟苯(91%,五氟苯26%/1,2,4,5-四氟苯17%)、氯苯(63%,80%).引入NN-二异丙基乙二胺(DIPEA)作为电子给体,能够还原芳香胺正离子自由基完成催化剂循环,DIPEA同时作为氢给体参与芳基自由基加氢.我们在催化反应条件下(5 mol%芳香胺)调研了脱卤加氢的卤代底物范畴.以TMPD为例,对溴苯乙酮光照4小时后可得到90%脱溴产物;相对难还原的溴苯经过6小时光反应脱卤达到37%.六氟苯经过24小时反应后可以脱去1-2个氟,生成五氟苯(25%)和1,2,4,5-四氟苯(50%).对氯苯甲酸甲酯在7.5小时反应后得到了72%的加氢产物;而对于更难还原的氯苯两小时光照可生成约40%的脱氯产物(增加TMPD用量可进一步提高脱氯效率至63%).TMPD催化杂环卤代化合物脱卤的效果也较好,如3-溴噻吩(18h,41%)和3-溴-4甲基吡啶(25h,60%).另外TMB和4,4',4"-(1,3,5-三嗪-2,4,6-三基)三苯胺作为光催化剂也可实现脱卤加氢.我们进一步研究了典型持久性有机污染物2,2',4,4'-四溴联苯醚(BDE47)的光催化脱溴反应,30小时光照后脱溴效率可达83%,并且产生了40%的全脱溴产物联苯醚.脱溴中间产物分布表明邻位溴脱除速率高于对位溴.这一结果与解离电子转移活化碳卤键的机理一致.总而言之,我们的工作表明小分子芳香胺光敏剂的激发态能够通过扩散控制的电子转移活化碳卤键.它们作为光催化剂可实现多种有机卤化物的脱卤加氢.
关键词碳卤键活化    光催化    脱卤加氢    卤代有机污染物    环境修复

Light-driven activation of carbon-halogen bonds (C–X) has become a powerful approach for constructing new chemical bonds in valuable pharmaceutical and industrial intermediates, as well as for the elimination of polyhalogenated aromatic pollutants [1-8]. Essentially, the process relies on high-energy excited states/intermediates that trigger electron transfer to cleave carbon-halogen bonds (C–X + e- → C· + X-, dissociative electron transfer), affording carbon radicals that can engage in diverse reactions, including hydrogenation and cross coupling [9-18]. For a thermodynamically favored process, energy levels of the photogenerated species should locate above the anti-bonding σ* or π* orbital of halogenated substrates. Promising results have been reported with classical photosensitizers, Ru(bpy)32+ and fac-Ir(ppy)3 (bpy is 2, 2'-bipyridine and ppy is 2-phenylpyridine), where their triplet excited states (-0.8 and -1.7 V vs. SCE) [1, 19], or the reduced complexes (-1.3 and -2.1 V vs. SCE) enable dissociative electron transfer. Recently, hexachlorocerate(Ⅲ) (CeCl63-), with a strongly reducing excited state (-3.45 V vs. Fc/Fc+), has been developed as a sensitizer for the reduction of aryl chlorides under UVA irradiation [20, 21]. Copper complexes are likewise involved in conversions of carbon-halogen bonds [22, 23], e. g., C-F functionalization under pulsed light-emitting diodes (LEDs) [24]. Organic sensitizers, such as diaryl dihydrophenazines [25], phenylphenothiazine [26, 27], perylene diimide[28] and pyrene [2], are also efficient photosensitizers, producing active reducing species (-2.06 to -2.5 V vs. SCE) via photon upconversion or consecutive two-photon absorption. These organic molecules are more cost effective and less prone to deactivation (e.g., halogen coordination in the case of transition metal catalysts) [3, 26, 27]. Halogen bonds or π-π interaction between catalyst and substrate may further facilitate bond activation via an inner sphere electron transfer pathway, however synthetic efforts are required in order to modulate the intermolecular interactions [15, 29].

Herein, we establish a metal- and additive-free photocatalytic system based on a N, N, N', N'-tetramethyl-p-phenylene- diamine (TMPD), or N, N, N', N'-tetramethylbenzidine (TMB) sensitizer featuring strongly reducing excited singlet states and diisopropylethylamine (DIPEA) as an electron/proton donor, for hydrodehalogenation of a variety of haloarenes under UV irradiation (λ > 360 nm). In this approach, photogenerated excited states of the amine sensitizers enable diffusion-controlled electron transfer to halogenated substrates, followed by cleavage of the C–X to give an aryl radical; subsequent radical hydrogenation affords the dehalogenated product (Scheme 1).

Scheme 1. Working hypothesis of the photocatalytic hydrodehalogenation

TMPD displays S0-S1 absorption extended to 380 nm (Fig. 1(a)). In the presence of selected aryl halides (4'-bromoacetophenone, hexafluorobenzene and chlorobenzene), TMPD absorption variations were negligible, excluding the interaction of the TMPD ground state with these compounds. The viability of TMPD in photo-induced activation of carbon-halogen bonds was initially evaluated by steady-state and time resolved emission spectroscopies. The emission intensity of TMPD (0.1 mM, 360 nm excitation) decreased upon introduction of all three substrates (2-10 mM, Fig. 1(b) and Fig. S1), which is consistent with an electron transfer from the singlet excited states to these compounds. The emission lifetime measured at 405 nm likewise decreased (Fig. 1(c)). The parallel Stern-Volmer plot of emission intensity and lifetime (Fig. 1(d)) indicates an outer sphere electron transfer to hexafluorobenzene, with negligible contribution of static quenching via a pre-associated ground state complex, in agreement with the unchanged absorption spectra [30-32]. The rate constants calculated by Stern-Volmer analysis (Fig. S1) were 5.8 × 1010 M-1 s-1 for 4'-bromoacetophenone, 4.4 × 1010 M-1 s-1 for hexafluorobenzene and 2.6 × 1010 M-1 s-1 for chlorobenzene (Fig. S1). Notably, the observed electron transfer is diffusion-limited, even in the case of exceptionally inert chlorobenzene [20]. For TMB, the electron transfer to hexafluorobenzene was also likewise diffusion-limited (3.6 × 1010 M–1 s–1), but became activation-controlled in the case of chlorobenzene (6.2 × 109 M–1 s–1, Fig. S1). The slower electron transfer observed for TMB could be attributed to the fact that its excited state energy is lower than that of TMPD (–3.48 and –3.56 vs. Fc/Fc+, respectively) [33]. These results established a kinetically feasible electron transfer, the initial step for hydrodehalogenation [6].

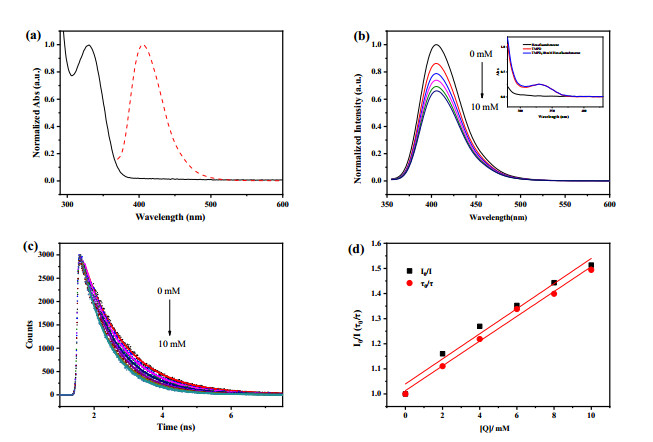

Fig. 1. (a) Absorption (solid line) and emission (dashed line) spectra of TMPD; (b) Changes in the emission intensity of TMPD upon addition of hexafluorobenzene. Note that the absorbance at the excitation wavelength did not change (inset); (c) Changes in the emission lifetime of TMPD; (d) Plots of the relative emission intensities (black) and lifetimes of TMPD (red) obtained from (b) and (c) against hexafluorobenzene concentration. All measurements were conducted in acetonitrile at room temperature

In the initial test, where 4′-bromoacetophenone (1 mM) was used as the model substrate with a stoichiometric amount of TMPD (2:1 according to the 2e/1H+ process) as the photoreductant, a conversion of 86% with a selectivity of 90% for hydrodebromination was observed after 6 h of irradiation (Table 1, entry 1). The quantitative production of bromide was additionally confirmed by ionic chromatography (Fig. S2). Involvement of aryl radical intermediates via the initial electron transfer was supported by the generation of C–C coupled products in the presence of N-methyl pyrrole (Fig. S3) [3, 34]. In situ electron paramagnetic resonance (EPR) experiments and the simulated EPR spectra also suggested the generation of TMPD+· and an acetophenone radical (via C–Br bond cleavage of the 4′-bromoacetophenone radical anion) (Fig. S4 and Table S1). The aryl radical then abstracts a hydrogen atom from TMPD/TMPD to give the hydrogenated product. TMB exhibited comparable activity under these conditions, with a yield of 88% (Table S2). Control experiments confirmed that photoirradiation and amines were essential for efficient hydrodehalogenation. The highest hydrodebromination yield was obtained in acetonitrile, while significantly inferior yields were observed with dimethylformamide (27%), methanol (20%), dichloromethane (17%), and n-hexane (10%) (Table S2). For hexafluorobenzene (Table 1, entry 2), both mono- and di-defluorination products were observed after 5 h of reaction time, albeit in relatively low yields (pentafluorobenzene, 26%, 1, 2, 4, 5-tetrafluorobenzene, 17%). It is possible that the fluorinated aryl radical engages in other processes due to the lack of efficient H donors. Chlorobenzene also demonstrated satisfactory conversion (63% at 5 h) and selectivity (80%, Table 1, entry 3).

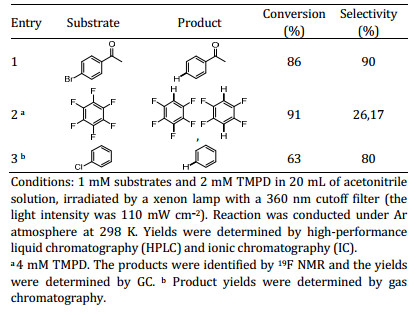

Table 1
Photochemical reduction results of various halogenated substrates: conversion and selectivity

Next, we conducted the hydrodehalogenation under catalytic conditions with 5% TMPD, using DIPEA (15 equivalents) as the electron/hydrogen donor for radical intermediates. DIPEA also reduces TMPD to recover the photosensitizer (Fig. S5). The results are summarized in Table 2 and Fig. S6. Gratifyingly, the conversion of 4′-bromoacetophenone occurred smoothly, with a hydrodebromination yield of 90% (entry 1), corresponding to a turnover number (TON) of 18. The hydrodebromination yield of bromobenzene was 37% after 6 h of irradiation (entry 2). Hydrodefluorination yields above 70% were obtained for hexafluorobenzene and pentafluoropyridine (enter 3 and 4). Notably, the yields of pentafluorobenzene (25%) and the di-hydrodefluorination product, 1, 2, 4, 5-tetrafluorobenzene (50%, Fig. S7) were significantly higher than those obtained under stoichiometric conditions, presumably due to a more efficient hydrogenation by DIPEA/DIPEA. In the case of chlorobenzene, the hydrodechlorination yield approached 40% after 2 h of irradiation, but did not increase with extended reaction time (entry 5). The dechlorination could be resumed by the addition of TMPD (0.1 equivalent, Fig. S6). The hydrogenation yield of methyl 4-chlorobenzoate reached 72% after 7.5 h of irradiation (entry 6). In addition, the catalytic system demonstrated compatibility with halogenated heteroarenes (entries 7 and 8), affording moderate to good product yields. The TON of these substrates with TMPD ranged from 7.4 to 14.4. When TMB was employed as the photocatalyst, a low dechlorinated product yield of 15% was observed under the same conditions, despite extended reaction times of 20 h (entry 9). This result could be attributed to the weaker electron transfer driving force from TMB excited states to the halogenated substrates, compared to TMPD, as indicated by emission quenching dynamics. 4, 4', 4''-(1, 3, 5-tri- azine-2, 4, 6-triyl)-tri-aniline (TTA), which demonstrates similar absorption to TMPD, was also tested for its photocatalytic ability in the hydrodehalogenation of 4′-bromoacetophenone (Fig. S8). The product yield after 4 h of irradiation reached 90% (entry 10). These results demonstrate that amine-based sensitizers are promising photocatalysts in light-driven organic transformations.

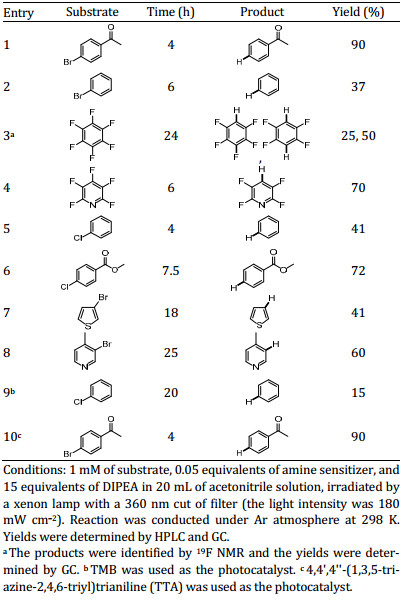

Table 2
Substrate scope of photocatalytic hydrodehalogenation

We further investigated the performance of TMPD as a photocatalyst in the debromination of 2, 2', 4, 4'-tetrabromo- diphenyl ether (BDE47), a typical persistent organic pollutant that is resistant to conventional reductive treatments [10, 35, 36]. The removal of bromines in polybrominated diphenyl ethers with low bromine substitution is challenging, as debromination becomes less thermodynamically favorable with decreasing bromine atom numbers. Under photocatalytic conditions, Pd cocatalysts are usually required to provide high degrees of debromiantion [10, 37, 38]. It was impressive to find that with 1 equivalent of catalyst and 2.5 v% DIPEA, BDE47 underwent facial debromination and 83% debromination efficiency was realized after 30 h, producing the completely debrominated product, diphenyl ether in 40% yield (Fig. S9). The distribution of debrominated intermediates, e.g., the 4:1 ratio of 2, 4, 4′-tribromodiphenyl ether (BDE28) to 2, 2′, 4-tribromodiphenyl ether (BDE17), indicated a debromination preference for the ortho position, which is in accordance with an electron transfer-triggered debromination [39, 40].

Emission quenching kinetics and the results of photochemical/photocatalytic hydrodehalogenation are consistent with the cleavage of carbon halogen bonds via an electron transfer from singlet excited states of TMPD or TMB. Control experiments indicated that DIPEA had a negligible effect on the emission of TMPD (Fig. S10), which is different from the activation of carbon-halogen bonds by the pre-photoreduced sensitizer in pyrene derivatives, and fac-Ir(ppy)3 catalyzed hydrodehalogenation [1, 16]. Analogous pathways have been reported for phenylphenothiazine and CeCl63– under near-UV or UVA irradiation [20]. The aromatic amines feature strongly reducing excited states, and their electron transfer kinetics are one order of magnitude faster than the activation-limited transfer from CeCl6* to 4-F-C6H4X (X = Br, Cl, F, 0.9–3.0 × 109 M–1 s–1). Notably, the overall conversion is additionally limited by the competition of carbon-halogen bond cleavage of the aryl halide radical anion intermediates, and the non-productive thermal back electron transfer [6]. Nonetheless, the activation of C–Cl and C–F bonds with readily available amines is an attractive alternative for selective hydrodehalogenation under mild conditions, and in a sustainable manner. The development of related compounds with suitable excited state energies and HOMO-LUMO levels are expected to achieve visible light activity, rapid catalyst turnover and enhanced activity. These amine sensitizers, in combination with a sencond light absorber could be integrated into tandem photocatalytic systems, in order to inhibit the back electron transfer, thus favoring the cleavage of carbon-halogen bonds.

In summary, we demonstrated that excited states of amine sensitizers enable diffusion-controlled electron transfer to effectively cleave a number of highly challenging carbon-halogen bonds. Successful light-driven hydrodehalogenation of various aromatic halides and organic pollutants was achieved in the absence of hazardous reagents. This method is a practical and cost-effective strategy, enabling exceptionally high activity.

References
[1]
D. M. Schultz, T. P. Yoon, Science, 2014, 343, 1239176. DOI:10.1126/science.1239176
[2]
I. Ghosh, R. S. Shaikh, B. Konig, Angew. Chem. Int. Edit., 2017, 56, 8544-8549. DOI:10.1002/anie.201703004
[3]
I. Ghosh, T. Ghosh, J. I. Bardagi, B. Konig, Science, 2014, 346, 725-728. DOI:10.1126/science.1258232
[4]
K. Chen, N. Berg, R. Gschwind, B. Konig, J. Am. Chem. Soc., 2017, 139, 18444-18447. DOI:10.1021/jacs.7b10755
[5]
K. Shimomaki, K. Murata, R. Martin, N. Iwasawa, J. Am. Chem. Soc., 2017, 139, 9467-9470. DOI:10.1021/jacs.7b04838
[6]
D. Koyama, H. J. A. Dale, A. J. Orr-Ewing, J. Am. Chem. Soc., 2018, 140, 1285-1293. DOI:10.1021/jacs.7b07829
[7]
M. Goez, C. Kerzig, R. Naumann, Angew. Chem. Int. Ed., 2014, 53, 9914-9916. DOI:10.1002/anie.201405693
[8]
I. Ghosh, B. Konig, Angew. Chem. Int. Ed., 2016, 55, 7676-7679. DOI:10.1002/anie.201602349
[9]
C. Y. Sun, D. Zhao, C. C. Chen, W. H. Ma, J. C. Zhao, Environ. Sci. Technol., 2009, 43, 157-162. DOI:10.1021/es801929a
[10]
L. N. Li, W. Chang, Y. Wang, H. W. Ji, C. C. Chen, W. H. Ma, J. C. Zhao, Chem.-Eur. J., 2014, 20, 11163-11170. DOI:10.1002/chem.201402477
[11]
W. Chang, C. Y. Sun, X. B. Pang, H. Sheng, Y. Li, H. W. Ji, W. J. Song, C. C. Chen, W. H. Ma, J. C. Zhao, Angew. Chem. Int. Ed., 2015, 54, 2052-2056. DOI:10.1002/anie.201409392
[12]
Y. H. Lv, X. F. Cao, H. Y. Jiang, W. J. Song, C. C. Chen, J. C. Zhao, Appl. Catal. B, 2016, 194, 150-156. DOI:10.1016/j.apcatb.2016.04.053
[13]
Q. Zhu, Y. Y. Wang, H. N. Zhang, R. Duan, C. C. Chen, W. J. Song, J. C. Zhao, Appl. Catal. B, 2017, 219, 322-328. DOI:10.1016/j.apcatb.2017.07.056
[14]
Y. Y. Wang, Q. Zhu, Y. Wei, Y. J. Gong, C. C. Chen, W. J. Song, J. C. Zhao, Appl. Catal. B, 2018, 231, 262-268. DOI:10.1016/j.apcatb.2018.03.032
[15]
J. Z. Lu, N. S. Khetrapal, J. A. Johnson, X. C. Zeng, J. Zhang, J. Am. Chem. Soc., 2016, 138, 15805-15808. DOI:10.1021/jacs.6b08620
[16]
S. M. Senaweera, A. Singh, J. D. Weaver, J. Am. Chem. Soc., 2014, 136, 3002-3005. DOI:10.1021/ja500031m
[17]
M. B. Khaled, R. K. El Mokadem, J. D. Weaver, J. Am. Chem. Soc., 2017, 139, 13092-13101. DOI:10.1021/jacs.7b06847
[18]
C. Costentin, M. Robert, J. M. Saveant, J. Am. Chem. Soc., 2004, 126, 16051-16057. DOI:10.1021/ja045989u
[19]
J. D. Nguyen, E. M. D'Amato, J. M. R. Narayanam, C. R. J. Stephenson, Nat. Chem., 2012, 4, 854-859. DOI:10.1038/nchem.1452
[20]
H. L. Yin, Y. Jin, J. E. Hertzog, K. C. Mullane, P. J. Carroll, B. C. Manor, J. M. Anna, E. J. Schelter, J. Am. Chem. Soc., 2016, 138, 16266-16273. DOI:10.1021/jacs.6b05712
[21]
L. Pause, M. Robert, J. M. Saveant, J. Am. Chem. Soc., 1999, 121, 7158-7159. DOI:10.1021/ja991365q
[22]
H. Q. Do, S. Bachman, A. C. Bissember, J. C. Peters, G. C. Fu, J. Am. Chem. Soc., 2014, 136, 2162-2167. DOI:10.1021/ja4126609
[23]
S. E. Creutz, K. J. Lotito, G. C. Fu, J. C. Peters, Science, 2012, 338, 647-651. DOI:10.1126/science.1226458
[24]
T. P. Nicholls, J. C. Robertson, M. G. Gardiner, A. C. Bissember, Chem. Commun., 2018, 54, 4589-4592. DOI:10.1039/C8CC02244E
[25]
J. C. Theriot, C. H. Lim, H. Yang, M. D. Ryan, C. B. Musgrave, G. M. Miyake, Science, 2016, 352, 1082-1086. DOI:10.1126/science.aaf3935
[26]
M. Haring, R. Perez-Ruiz, A.n Jacobi von Wangeli, D. D. Diaz, Chem. Commun., 2015, 51, 16848-16851. DOI:10.1039/C5CC06917C
[27]
R. Matsubara, T. Yabuta, U. M. Idros, M. Hayashi, F. Ema, Y. Kobori, K. Sakata, J. Org. Chem., 2018, 83, 9381-9390. DOI:10.1021/acs.joc.8b01306
[28]
J. T. Shang, H. Y. Tang, H. W. Ji, W. H. Ma, C. C. Chen, J. C. Zhao, Chin. J. Catal., 2017, 38, 2094-2101. DOI:10.1016/S1872-2067(17)62960-7
[29]
B. Liu, C. H. Lim, G. M. Miyake, J. Am. Chem. Soc., 2017, 139, 13616-13619. DOI:10.1021/jacs.7b07390
[30]
S. V. Rosokha, E. A. Loboda, J. Phys. Chem. A, 2015, 119, 3833-3842. DOI:10.1021/acs.jpca.5b01600
[31]
C. G. S. Lima, T. D. Lima, M. Duarte, I. D. Jurberg, M. W. Paixao, ACS Catal., 2016, 6, 1389-1407. DOI:10.1021/acscatal.5b02386
[32]
in Principles of Fluorescence Spectroscopy (Ed.: J. R. Lakowicz), Springer US, Boston, MA, 2006, pp. 277-330.
[33]
A. Banerjee, D. E. Falvey, J. Org. Chem., 1997, 62, 6245-6251. DOI:10.1021/jo970495j
[34]
Z. Chami, M. Gareil, J. Pinson, J. M. Saveant, A. Thiebault, J. Org. Chem., 1991, 56, 586-595. DOI:10.1021/jo00002a020
[35]
M. Lei, S. Guo, Z. Y. Wang, L. H. Zhu, H. Q. Tang, Environ. Sci. Technol., 2018, 52, 11743-11751.
[36]
Y. Wei, Y. J. Gong, X. Zhao, Y. Y. Wang, R. Duan, C. C. Chen, W. J. Song, J. C. Zhao, Environ.-Sci. Nano, 2019, 6, 1585-1593. DOI:10.1039/C9EN00175A
[37]
H. Sakamoto, J. Imai, Y. Shiraishi, S. Tanaka, S. Ichikawa, T. Hirai, ACS Catal., 2017, 7, 5194-5201. DOI:10.1021/acscatal.7b01735
[38]
K. Fuku, K. Hashimoto, H. Kominami, Chem. Commun., 2010, 46, 5118-5120. DOI:10.1039/c0cc00589d
[39]
M. Lei, N. Wang, L. H. Zhu, H. Q. Tang, Chemosphere, 2016, 150, 536-544. DOI:10.1016/j.chemosphere.2015.10.048
[40]
Z. Hu, X. Wang, H. T. Dong, S. Y. Li, X. K. Li, L. S. Li, J. Hazard. Mater., 2017, 340, 1-15. DOI:10.1016/j.jhazmat.2017.07.009
