The photocatalytic performance and active sites of g-C3N4 effected by the coordination doping of Fe(III)
Guimei Liua, Guohui Dongb, Yubin Zenga, Chuanyi Wangb
a. Hubei Key Laboratory of Accoutrement Technique in Fluid Machinery and Power Engineering, Wuhan University, Wuhan 430072, Hubei, China;
b. School of Environmental Science and Engineering, Shaanxi University of Science and Technology, Xi'an 710021, Shaanxi, China
* Corresponding author. Dong Guohui, Tel: +86-29-86132765; E-mail: dongguohui@sust.edu.cn;
Zeng Yubin, E-mail: zengyubin@whu.edu.cn;
Wang Chuanyi, E-mail: wangchuanyi@sust.edu.cn
This work was supported by the National Nature Science Foundation of China (21876104, 21603271, U1703129) are gratefully appreciated
Abstract: Element doping is a simple and effective method to improve photocatalytic activity of g-C3N4. However, the doping model and mechanism of metal elements are still uncharacterized. In this study, we found that Fe(III) can be doped into g-C3N4 through the coordination between amidogen and Fe(III). After activity tests, it was found that this coordination doping of Fe(III) could enhance the RhB oxidation and Cr(VI) reduction activities of g-C3N4 in interesting ways, but it is not helpful for the NO-removal performance of g-C3N4. Characterization and calculation results show that the coordination of Fe(III) can not only improve the transfer of photogenerated electrons, but it also can passivate the carbon site of triazine rings, which is the active site of NO-removal. This study revealed some doping mechanisms and effect mechanisms of elemental metal in photocatalysis.
© 2020, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Doping    g-C3N4    Photocatalysis    Fe ion    NO removal
Fe(III)螯合掺杂对g-C3N4光催化性能和活性位的影响
刘桂梅a, 董国辉b, 曾玉彬a, 王传义b
a. 武汉大学动力与机械学院, 湖北武汉 430072;
b. 陕西科技大学环境科学与工程学院, 陕西西安 710021
摘要:元素掺杂是一种简单有效的光催化剂改性方法.已有诸多文献报道采用非金属元素(B、P、S)或金属元素(Na+,Ni3+,Co3+,Cu2+)对g-C3N4进行掺杂改性,但目前对金属掺杂的模型和影响机理尚不清晰.g-C3N4作为层状材料,它的表面和边缘有大量的胺基,它对光生载流子的传输起到重要作用.此外,胺基可以与金属通过配位键形成螯合物;与胺基螯合的金属由于其功函数较小,可以捕获半导体的光生电子,并有利于降低光生载流子的复合.本文选用Fe(III)对g-C3N4进行掺杂改性,SEM-EDS表明,C和N元素均匀分布在g-C3N4整个骨架上,而Fe元素主要分布在g-C3N4边缘部分;FTIR结果发现,掺杂Fe后,N-Hx伸缩振动峰强度随着掺杂量的增加而降低,证明Fe(III)与g-C3N4表面胺基之间形成配位键,即Fe(III)掺杂为螯合掺杂.Fe(III)螯合掺杂后的g-C3N4光催化氧化RhB和光催化还原Cr(VI)的性能都得到显著提升.这是因为螯合掺杂Fe(III)后,g-C3N4不仅产生了更多的光生电子,而且由于产生的Fe(II)的芬顿效应产生了更多的羟基自由基,极大地提升了g-C3N4光催化氧化还原性能.但是Fe(III)螯合掺杂后却抑制了g-C3N4光催化去除NO的性能,NO去除性能随着Fe(III)掺杂量的增加而下降,这与Fe(III)的螯合掺杂模型有密切关系.NO-TPD实验结果表明,Fe掺杂降低了g-C3N4对NO的吸附;但脱氨基实验证明胺基对NO吸附并无作用.通过EPR表征发现,掺杂Fe后C的Lorentzian线强度降低了2/3,说明C上的未成对电子减少.同时通过固体NMR(1H谱)中发现掺杂后N-H2减少、但C-H数量增多的规律.说明Fe(III)与表面胺基(N-H2)螯合后,质子占据C活性位,而C活性位却是NO在g-C3N4表面的吸附位点.所以Fe(III)的螯合掺杂会降低g-C3N4光催化去除NO的性能.综上,Fe(III)螯合掺杂可以提高g-C3N4的氧化还原能力,但是并不适用于所有的光催化反应.同时,关注不理想的活性变化有助于进一步挖掘改性方法对材料结构的影响,指导改性材料的使用,并可能为其它相关研究带来启发.
关键词螯合掺杂    g-C3N4    光催化    Fe(III)    一氧化氮去除

1 Introduction

In recent years, numerous research groups have worked on the photocatalysis for the environmentally friendly conversion of pollutants, including dyes, heavy metals, antibiotics, carbon dioxide, and nitric oxide, among others [1-5]. The photocatalysts in these reactions can be excited by incident light to produce charge carriers, which may transport to the surface of photocatalyst. Then, the generated charge carriers can react with external pollutants either directly or indirectly [6-8]. Among various photocatalysts, g-C3N4 attracted much attention from all over the world because it has many advantages, such as its low cost, stability, nontoxic properties, and easy preparation [9-11]. However, the photocatalytic activity of g-C3N4 is not high due to the fast recombination of photogenerated electron and hole pairs [12]. Various methods have been developed to improve the photocatalytic activity of g-C3N4, including element doping, self-doping, formation of a heterojunction, and sensitization [13-18]. Out of all of these modification methods, element doping is one that is simple and effective. In the operation process, researchers only need to add small doses of dopants in the raw materials of g-C3N4 without doing any other treatment [19]. As for improving the effectiveness of the materials, element doping can improve visible light absorption and the separation of photogenerated charge carriers by introducing an impurity level within the band gap of g-C3N4 [20].

In the past few years, scientists have doped various metallic and nonmetallic elements into the structure of g-C3N4. The doping methods of nonmetallic elements, such as B, P, and S, have been studied extensively. Previous studies have shown that nonmetallic elements generally substitute for the lattice atoms of g-C3N4 [15, 21]. However, the doping model of metal ions, such as Na+, Ni3+, Co3+, and Cu2+, still has not been studied clearly [13, 22-24]. Some previous works reported that metal ions are shown to embed in the in-planar cavities of g-C3N4, while others have suggested that metal ions insert into the interlayer of g-C3N4. As is known, different doping methods correspond to different effect mechanisms of metal ions for the photocatalytic performance of g-C3N4. Therefore, the unclear doping model of metal ions determines that the effect mechanisms of metal ions for the photocatalytic performance of g-C3N4 are also unclear [25]. Therefore, fully characterizing and understanding the doping model and effect mechanisms of metal ions on the photocatalytic performance of g-C3N4 is very important, despite being challenging.

As is known, the surface and edge of g-C3N4 contain a number of amino groups. Previous literatures have reported that metal ions can form coordination complexes with these amino groups [26-29]. Therefore, it is possible that the metal ions may bond with amino groups and form the coordination doping on the surface and edge of g-C3N4 structure. According to previous reports, amino groups can help with the transfer of photogenerated electrons. Meanwhile, metal ions can extract photogenerated electrons from semiconductors because of their lower work function [30, 31]. In this case, coordination doping may produce a synergistic effect existing between the amino groups and metal ions. This synergistic effect may further improve the transfer of photogenerated electrons and boost the photocatalytic activity of g-C3N4.

To verify the above theoretical analysis, ferric ion (Fe(III)) was chosen as a dopant because of the following reasons. First, iron is important to the human body, and is widely used in daily life and industrial processes. Second, iron is a variable valence metal and stably exists in the form of Fe(III), which is a common oxidant. Third, Fe(III) could capture the photogenerated electrons to be reduced to Fe(II), which triggers the Fenton reaction to produce more OH [32]. After the Fenton reaction, Fe(II) can be recovered in the form of Fe(III). Therefore, the fourth reason is that Fe(III) can be used repeatedly without inactivation.

Recently, we prepared Fe(III)-doped g-C3N4 (CNFex) through the coordination between amidogen and Fe(III) ions. After activity tests, it was found that the coordination doping of Fe(III) could enhance the Rhodamine B (RhB) and Cr(VI) removal activity of g-C3N4, yet is not helpful for the NO-removal performance of g-C3N4. Density functional theory (DFT) calculations and various characterizations were employed to investigate the effect of Fe(III) on the surface atomic structure of g-C3N4 and the removal of different pollutions (RhB, Cr(VI), and NO). The detailed structural information and photocatalytic activity of CNFex were then analyzed in detail.

2 Experimental
2.1 Materials and synthesis

All of the chemicals used in this study were analytical grade and used without further treatment.

g-C3N4 was synthesized by heating melamine directly. First, 4 g of melamine was placed in a 30-mL ceramic boat. Then, this ceramic boat was placed in a tube furnace and heated to 520 ℃ with a heating rate of 5 ℃/min. The calcination process was kept at 520 ℃ for 4 h with the protection of Argon gas (99.999%). After 4 h of calcination, the furnace was cooled to room temperature. Subsequently, it was found that the white melamine in the ceramic boat had changed to a yellow solid. This yellow solid was ground into powder and denoted as CN.

For comparison, samples of Fe doped g-C3N4 were also synthesized. Typically, 4 g of melamine was dispersed into 100 mL of methanol solution under continuous stirring. Then, a certain amount of Fe(NO3)3·9H2O was also added to this suspension to form a mixture. This mixture was stirred continuously at 60 ℃ until the methanol was completely removed. The obtained solid was transferred in a 30 mL ceramic boat, which was then placed into a furnace for the next calcination. The calcination process was kept at 520 ℃ for 4 hours with the protection of Argon gas (99.999%). Finally, the prepared catalyst was denoted as CNFex (x = 0, 0.05, 0.25, 0.5, and 1), where x is the mass percent of doped iron to the total mass of the sample.

2.2 Characterization of the photocatalysts

Powder X-ray diffraction (XRD) patterns were recorded on a Bruker D8 Advance diffractometer with monochromatized Cu Ka radiation (λ = 1.5418 Å ) to characterize the crystal phase structure. The morphology and structure of the samples were examined by transmission electron microscopy (TEM; JEM 2100). X-ray photoelectron spectroscopy (XPS) with Al Kα X-rays (Thermo Scientific Escalab 250) was applied to investigate the surface compositions of different samples. UV-Vis diffuse reflectance spectra of samples were obtained using an UV-Vis spectrometer (Thermo Scientific Evolution 220) to analyze the light absorption ability and band gap of different samples. The nitrogen adsorption and desorption isotherms were measured using an AUTOSORB-IQ-MP system to measure the surface area of different samples. Fourier-transform infrared spectra (FT-IR) were obtained on a (Nicolet iS50, Thermo) spectrometer using KBr as the reference sample to reveal the existence of chemical bonds. Electron spin resonance (ESR) signals were recorded on an E500-10/12 spectrometer at room temperature to detect defects or free radicals.

2.3 Photocatalytic reactions

To study the oxidation and reduction ability of final samples, we chose RhB, Cr(VI), and NO as model pollutants.

The RhB- and Cr(VI)-removal experiments were conducted in a 100 mL reaction cell with an external cooling water jacket, which ensured that the test temperature was kept at room temperature. Typically, 50 mg of the as-prepared sample was dispersed in 50 mL (10 mg/L) RhB or K2Cr2O7 solution with constant stirring for 1 h in the dark to establish an adsorption-desorption balance. After the adsorption-desorption balance, a 300 W Xe lamp with a 420 nm cutoff filter was chosen as the visible light source. During the visible light irradiation, 5 mL of the suspension was taken out from the reaction cell and to test the concentration of RhB or Cr(VI) at different times. The concentration of RhB was analyzed directly by UV-vis spectroscopy (UV-1800) at λ = 552 nm. The Cr(VI) concentration analysis was conducted using the diphenylcarbazide spectrophotometric method [33].

The photocatalytic NO-removal experiments were performed in a continuous flow cylindrical reactor (V = 0.785 L, R = 5 cm, and H = 10 cm), which was made from glass with a quartz skylight. Before experiments, 50 mg of as-prepared sample was well-dispersed in a glass sample dish (R= 3 cm). In the process of NO-removal, the sample dish was placed in the middle of the reactor. Meanwhile, 600 ppb of NO gas (balanced with air) was introduced into the reactor continuously. The visible light, which was generated from a 300 W Xe lamp, irradiated the sample dish continuously. The concentration of NO was monitored by a NOx analyzer (Thermal 42i).

2.4 DFT calculation

DFT calculations were carried out with the Cambridge Sequential Total Energy Package (CASTEP) program in Materials Studio 7.0. In the calculation, the Generalized Gradient Approximation (GGA), as well as the Perdew-Burke-Ernzerh of functional (PBE), was deployed. For the sake of accuracy, the cutoff was set to 450 eV and 5 × 5 × 3 k points with the Monkhorst-Pack scheme in the first Brillouin zone was employed. All of the structure models were fully relaxed, with the convergence criteria for geometric optimization and energy calculation set to 1.0 × 10‒5 eV per atom, 0.05 GPa, 1.0× 10‒6 eV per atom for maximum force, maximum stress, and the tolerance of energy. We first relaxed a 1 × 1 × 1 super-cell of bulk g-C3N4. Then, a single Fe atom was introduced into the triangular pores in the 2 × 1 × 1 and 2 × 2 × 1 optimized super-cells of g-C3N4.

3 Results and discussion
3.1 Photocatalytic oxidation and reduction

To evaluate the photocatalytic oxidation activity of the synthesized materials, RhB was chosen as the model pollutant because the removal of RhB is mainly due to the oxidation of photogenerated holes [34]. Fig. 1(a) and Fig. 1(b) shows that all of the samples could absorb about 5% of RhB when the adsorption-desorption balance was reached. After visible light irradiation for 60 min, the removal efficiencies of RhB over CN, CNFe0.05, CNFe0.25, CNFe0.5, and CNFe1.0 were approximately 30%, 61%, 87%, 30%, and 29%, respectively. The degradation rate of CNFe0.25 is nearly two times greater than that of g-C3N4 (Fig. 1(c)).

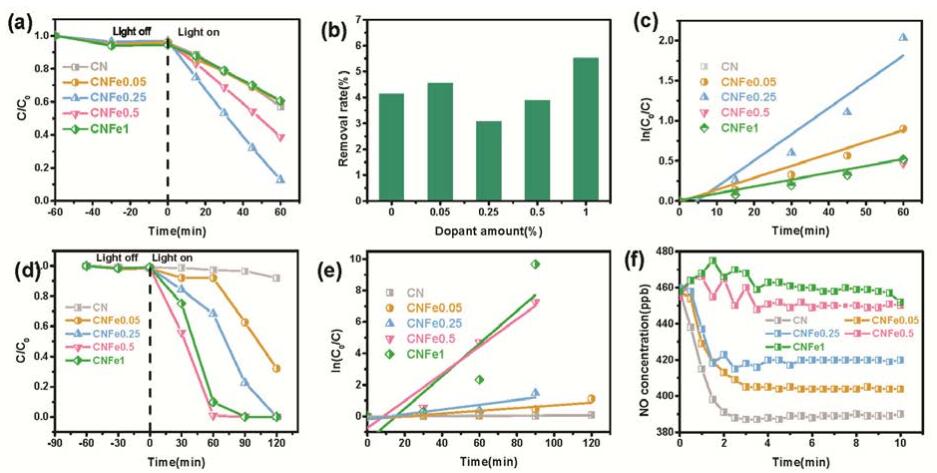

Fig. 1. (a) The degradation of RhB under the visible light irradiation; (b) the adsorption abilities of different samples for RhB; (c) the RhB degradation rates of different samples; (d) the removal of Cr (VI) under the visible light irradiation; (e) the Cr (VI) removal rates of different samples; (f) the removal of NO under the visible light irradiation.

In addition to the photo-oxidation capacity, the photo-reduction capacities of different samples were also compared by investigating the Cr(VI)-removal behaviors. As shown in Fig. 1(d), after irradiation with visible light for 120 min, Cr(VI) can be removed quickly by the modified g-C3N4, while almost no Cr(VI)-removal occurred in the CN system. Among different samples, CNFe0.5 displayed the best Cr(VI) reduction performance. The Cr(VI)-removal rate of CNFe0.5 is about 16 times the Cr(VI)-removal rate of CN (Fig. 1(e)). These experiments reveal that coordination doping with Fe (III) could improve the photocatalytic oxidation and reduction performances of g-C3N4.

Since both photocatalytic oxidation and reduction performances of g-C3N4 could be improved by coordination doping of Fe(III), it is reasonable to consider that the coordination doping of Fe(III) would also improve the NO-removal performance of g-C3N4. However, Fig. 1(f) surprisingly shows that the NO-removal rate of g-C3N4 dropped with increasing doping amounts of Fe(III). The reasons for this will be discussed later in the text.

3.2 Structure analysis

XRD was applied to characterize the phase structure of the final samples. From Fig. 2(a), the XRD pattern of g-C3N4 shows two distinct peaks at 13.0° and 27.4°. These two peaks correspond to the (100) and (002) crystal planes of g-C3N4, respectively[9]. Notably, no new diffraction peaks that relate to the compounds of Fe can be found in the XRD patterns of the CNFex samples. However, the existence of iron can be directly proven by XPS. As shown in Fig. 2(b), carbon, nitrogen, and oxygen could be found in the survey spectra of both CN and CNFe0.5. Additionally, a Fe 2p peak located at 710.2 eV can be found in the high-resolution XPS spectrum of CNFe0.5, but not in that of CN, indicating that the Fe element exists in the framework of g-C3N4 (Fig. 2(c)). These XRD and XPS results suggest that elemental iron was doped into the CNFex structure, but not in the form of some compound. If this had been the case, the XRD peak intensities for CNFexwould be smaller than that of CN, since the doping of iron would destroy the framework of g-C3N4. Compared with the XRD peaks of CN, the peaks of CNFex become weaker and broader, confirming the iron was doped into the frame of g-C3N4.

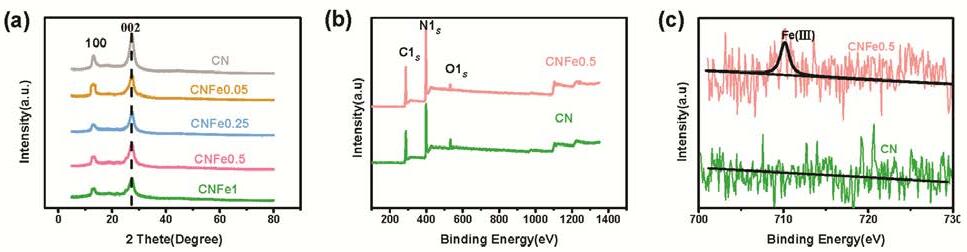

Fig. 2. (a) The XRD patterns of different samples; (b) the XPS patterns of different samples; (c) the Fe 2p XPS patterns of different samples.

To investigate the distribution of elemental iron in the framework of g-C3N4, EDS mapping of Fe was measured based on SEM image. As shown in Fig. 3(a), the morphology of CNFe0.5 is mainly the bulk particles with different sizes. Fig. 3(b) and 3(c) shows that C and N are uniformly distributed in the framework of CNFe0.5. However, the Fe is mainly distributed at the marginal of the CNFe0.5 framework (Fig. 3(d)). From the structure diagram of g-C3N4, the marginal of g-C3N4 consists of many amidogens. Since coordination bonds can be formed between amidogen and Fe(III), the doping of elemental Fe into g-C3N4 may be coordination doping. This speculation can be proven by FTIR experiments. From Fig. 3(e), the bands in the range of 1250‒1651 cm‒1 originated from the stretching vibration signals of the sp3 C-N bonds and typical sp2 C=N stretching modes. The peaks at 808 and 3168 cm-1 can be assigned to the deformation mode of N-H or N=H in amino groups respectively [35]. It is worth noting that these two peaks decrease with increasing Fe-doping amounts. Since amino groups can coordinate with Fe ions and form coordination complexes, the decrease of amino groups is parallel with the EDS mapping of element Fe, further confirming that the doping of Fe in g-C3N4 is mainly the coordination doping.

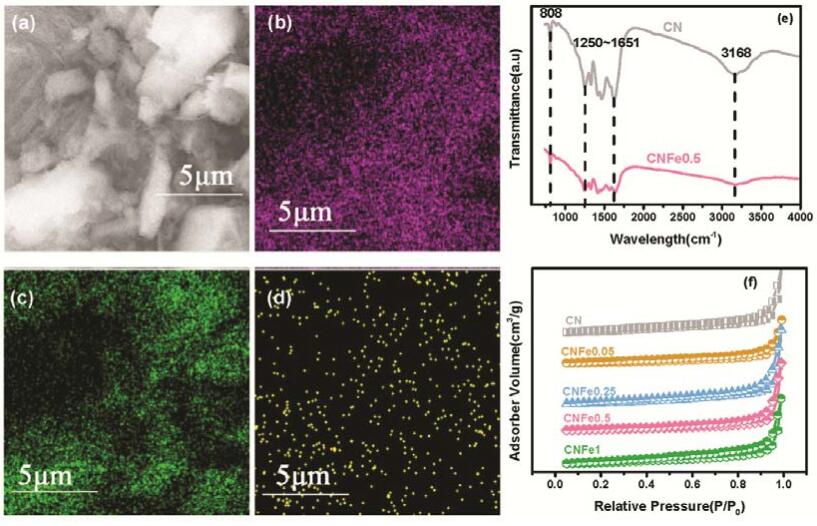

Fig. 3. (a) The morphology of CNFe0.5 sample; the EDX-mapping of C (b), N (c), and Fe (d) elements; (e) FT-IR spectra of CN and CNFe0.5 samples; (f) the nitrogen adsorption-desorption isotherms of different samples.

A Brunauer-Emmett-Teller (BET) instrument was applied to measure the specific surface area of the final samples. Fig. 3(f) shows the nitrogen adsorption-desorption isotherms of different samples. The BET surface areas of CN, CNFe0.05, CNFe0.25, CNFe0.5, and CNFe1.0 were calculated to be 4.895, 3.404, 5.400, 4.235, and 5.131 m2/g, respectively. Obviously, the change of BET surface areas is very small, suggesting the excellent photocatalytic activity of Fe0.25-g-C3N4 is not caused by the change of BET surface areas.

3.3 Analysis of the activity change

The photocatalytic activity of a photocatalyst is dependent on its light absorption ability and its band structure. As shown in Fig. 4(a), the UV-vis absorption spectra of CN and CNFex are different.

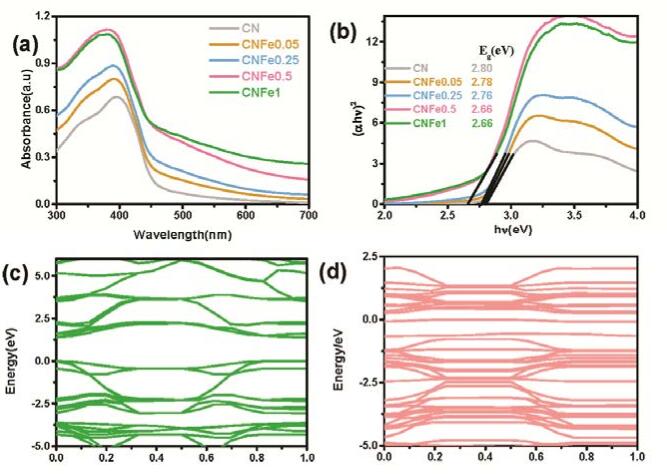

Fig. 4. (a) UV-vis absorption spectra of different samples; (b) band gaps of different samples; (c) the calculated band structure of CN; (d) the calculated band structure of CNFex.

The Fe-doping can improve the light absorption ability of g-C3N4 in both the ultraviolet and visible light ranges. Meanwhile, the UV-vis absorption edges of doped samples are red-shifted when they are compared with that of the pure sample. Both the improvement of light absorption and the red-shift effect of the absorption edge are increased with increased doping amounts. From a plot of (ahν)2 versus photon energy (hν), the band gaps (Eg) of CN, CNFe0.05, CNFe0.25, CNFe0.5, and CNFe1 were estimated to be 2.80, 2.78, 2.76, 2.66, and 2.66 eV, respectively (Fig. 4(b)). This observation suggests that the Fe-doping can narrow the band gap of g-C3N4 and, thus, leads to improvement of light absorption ability [36].

To find out the origin of the phenomenon that Fe-doping can narrow the band gap of g-C3N4, DFT calculations were applied. After the optimization of built models, we found that the Fe-doping made the crystal cell become bigger (Table 1). The calculation results of the band structures show that Fe-doping led to the formation of impurity bands in the bandgap, which narrowed the band gap for more light absorption. From Fig. 4(c) and 4(d), the downward shift of the conduction band (CB) and valance band (VB) implied that the oxidizing ability of photogenerated holes in CNFex becomes stronger, while the reducing ability of photogenerated electrons becomes weaker. Referring to the DOS as shown in Fig. 5(a), the top of the VB in both CN and CNFex are mainly composed of C 2p. However, the bottom of the CB in CN and CNFex are different. In CN, the bottom of the CB is mainly composed of N 2p, while the bottom of the CB in CNFex is mainly composed of Fe 2(d). Therefore, in the photocatalytic process of CNFex, the electrons are generated from C atoms and excited into Fe atoms. The transfer of photogenerated electrons from C atoms to Fe atoms can also be reflected in the calculation results of the electron density differences. Fig. 5(b) shows the electron density differences of CNFex, where the blue color corresponds to a bigger electron density and the red color shows a lower electron density. In the image, it can be seen that the electron density around Fe is smaller than that of C and N. In this case, an electric field (EF) can be formed between N/C and Fe, the direction of which is from Fe to N/C. Under the pressure of this EF, the photogenerated electrons will transfer from C/N atoms to Fe atoms. Based on DFT calculations, Fe-doping not only can narrow the band gap of g-C3N4, but can also improve the transfer of photogenerated electrons.

Table 1
Comparison of calculated crystal structures over g-C3N4, 0.075 Fe-g-C3N4, and 0.15 Fe-g-C3N4.

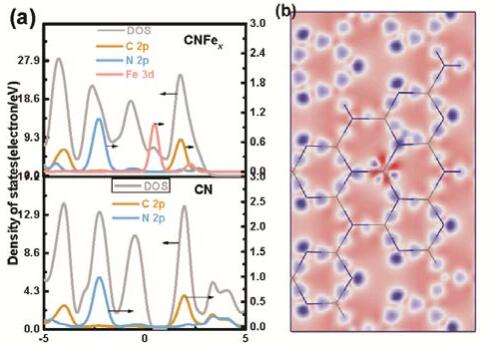

Fig. 5. (a) The total density of states (DOS) of CN and CNFex; (b) the electron density differences of CNFex.

Photoluminescence (PL) spectra were applied to further investigate the separation efficiency of photo-generated electrons and holes, as displayed in Fig. 6(a). A strong emission peak in CN appears at about 452 nm on account of the direct combination of photogenerated electrons and holes [37]. When Fe2+ was doped into g-C3N4, the intensity of this peak was inhibited significantly, confirming that Fe2+-doping can improve the transfer of photo-generated electrons. More interestingly, a new long-wave emission peak at around 442 nm appeared in the PL spectrum of CNFe0.5. This new peak corresponds to the electron excitation from valance band to the impurity bands of Fe2+, which can explain the light absorption of CNFe0.5 in the range of 450–700 nm.

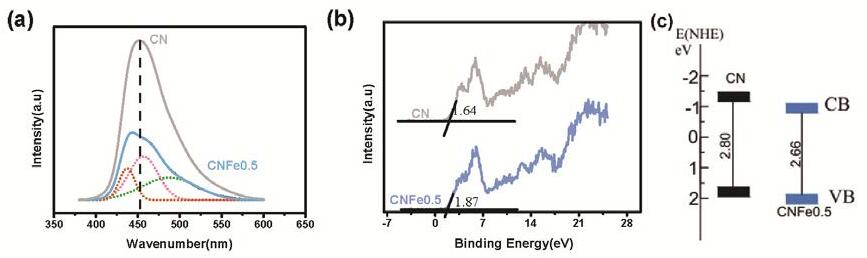

Fig. 6. (a) PL spectra of CN and CNFe0.5; (b) VB-XPS patterns of CN and CNFe0.5; (c) the band structures of of CN and CNFe0.5.

To analyze the VB/CB potential of CNFex, valence-band XPS (VB-XPS) data were examined. From Fig. 6(b), the VB potential of CN and CNFe0.5 are 1.64 and 1.87 V versus NHE, respectively. Then, according to the formula Eg = EvEc (Eg: band gap, Ev: VB potential, Ec: CB potential), the CB potentials of CN and CNFe0.5 were calculated to be -1.16 and -0.79 V, respectively. As shown in Fig. 6(c), Fe-doping could shift the VB potential and CB potential negatively, consistent with the results of the DFT calculations. Although the CB position is decrease, the photo-reduction Cr(VI) activity is improved. This is because that the reduction potential is not the only determinant for the Cr(VI) reduction. The amount of actives sites, carrier recombination rate and surface area also affect the reductive reaction of Cr(VI).

As is known, the generation of active species is particularly sensitive to the potential of VB and CB. We therefore measured the active species that may be generated in the photocatalysis process. First, photocurrent experiments indicated that electrons can be generated in both CN and CNFex systems under the visible light irradiation. Fig. 7(a) shows that the photocurrent signal of CNFe0.5 is much stronger than that of CN, indicating CNFex can produce more photogenerated electrons and holes than CN. Photogenerated carriers may produce O2 and OH through the redox reaction. Therefore, the DMPO spin-trapping ESR technique was used to detect O2 and OH generated in different sample systems. As shown in Fig. 7, no OH and O2 signals can be detected in either the CN or CNFe0.5 systems in darkness. Under the light irradiation, six characteristic peaks of DMPO-

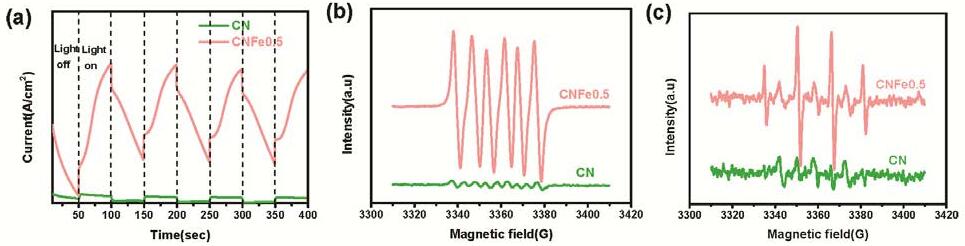

Fig. 7. (a) The photocurrent curves of CN and CNFe0.5 samples; (b) DMPO spin-trapping ESR technique was used to detect O2; (c) DMPO spin-trapping ESR technique was used to detect OH.

O2 can be detected in CN systems (Fig. 7(b)). However, there are no OH signals found in this system (Fig. 7(c)). As for CNFex systems, both O2 and OH can be measured. Meanwhile, the DMPO-O2 signal in the CNFe0.5 system is much larger than that in the CN system. These phenomena suggest Fe-doping not only enhance the yield of O2, but also opens the function of

OH generation. It is well known that the Fenton reaction (Fe2+ + H2O2 → Fe3+ + OH + OH) between Fe2+ and H2O2 can produce OH effectively. Therefore, we believe that the Fe2+-induced Fenton reaction is the origin of OH in CNFex system.

As is known, OH is a very powerful oxidizer. It can oxidize and decompose nearly all organic contaminants. Previous literature also reported that NO can be oxidized into NO3 by OH. The EPR and VB-XPS showed that Fe-doping not only enhances the yield of OH, but also makes the VB of g-C3N4 more positive. Therefore, Fe-doping should improve the NO-removal activity of g-C3N4. However, the NO-removal activity of g-C3N4 dropped with the increase of Fe-doping amounts. Meanwhile, both the RhB photo-oxidation and Cr(VI) photo-reduction have been improved by the doping of Fe(II), suggesting the decrease of NO-removal activity has nothing to do with the ability to produce high quality carriers. Therefore, we believe that the decrease of NO-removal activity is caused by the decrease of NO adsorption, which can be confirmed by NO-TPD (Fig. 8(a)).

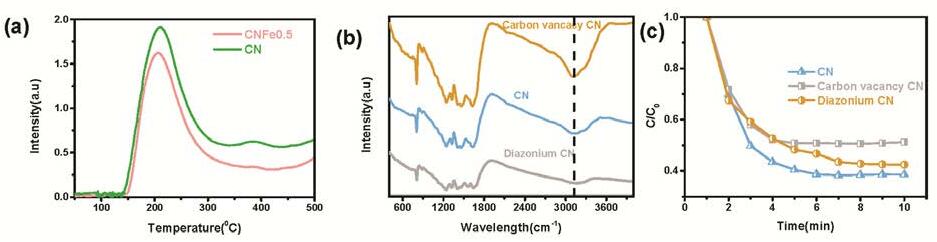

Fig. 8. (a) NO-TPD curves of CN and CNFe0.5; (b) FTIR spectra of different samples; (c) NO removal experiments of different samples.

As mentioned earlier, the doping of elemental Fe into g-C3N4 can be described as coordination doping, which forms through the coordination between amidogen and Fe(III). Thus, the amino groups are occupied by Fe(III). Larger amounts of Fe(III) doping will induce a smaller surplus of amino groups. Therefore, we suppose that the decrease of NO adsorption over CNFex is related to the surface amino group. To confirm this supposition, we prepared two kinds of samples, g-C3N4 with fewer surface aminos by deaminization and g-C3N4 with surface carbon vacancies, which can expose more surface aminos. Fig. 8(b) shows that the amino group in g-C3N4 is significantly decreased after the deaminization. Meanwhile, the calcination under Ar atmosphere makes the amount of amino group in g-C3N4 increase. Then, we conducted NO removal experiments with them. However, the results show that the effect of NO removal does not correlate with the number of amino groups (Fig. 8(c)), suggesting that the adsorption sites of NO are not N atoms, but C atoms. This conclusion is reasonable in theory because both the C atom in g-C3N4 and the N atom in NO have unpaired electron. Since two unpaired electrons are easier to form covalent bonds with, NO would easily adsorb on the C atom of g-C3N4. Therefore, we speculate that C atom may be passivated and, thus, cause the decrease of NO adsorption. To test this speculation, EPR spectrometry was employed to analyze the change of unpaired electrons of the samples. As shown in Fig. 9(a), CN exhibits a strong Lorentzian line that is mainly due to the unpaired electrons on the carbon atoms of the aromatic rings [38]. After the introduction of Fe(III), the intensity of this Lorentzian line decreased about 2/3, suggesting the amount unpaired electrons on the carbon atoms have deceased. In other words, some C atoms in CNFex have been passivated after the introduction of Fe(II).

To further prove why Fe-doping causes the decrease of NO adsorption, solid-state nuclear magnetism (NMR) spectra of CN and CNFe0.5 were studied. As shown in Fig. 9(b), the 13C spectra of both samples display two peaks at about 155 and 163.8 ppm, respectively. This phenomenon suggests two kinds of C exist in CN and CNFe0.5 samples. The peak at around 155 ppm can be assigned to C-N3 (C2), while the peak at 163.8 ppm is ascribed to C-NHx (C1) [39]. Although both samples contain C1 and C2, the ratios of C1 to C2 in the two samples are different. In CN, the ratio of C1 to C2 is 0.57. However, this ratio in CNFe0.5 decreased to 0.53, indicating the number of C-NHx in CNFe0.5 is fewer than that in CN. This decrease is due to the coordination between Fe and amino groups. Fig. 9(c) shows the 1H spectra of two samples. The 1H spectrum of CN shows three peaks at about 8.3, 3.2, and 0.41 ppm, which correspond to N-H, N-H2, and C-H, respectively. Among these three peaks, N-H2 possesses the highest intensity, while C-H shows the least intensity. After the doping of Fe, the 1H spectrum of CNFe0.5 also shows three peaks at the same positions as that of CN. However, the intensity of these peaks has changed dramatically. After the doping of Fe, the intensity of N-H2 has become lower, while the intensities of N-H and C-H have become stronger. This phenomenon suggests that Fe-doping makes N-H2 give one H to the C atom of the triazine ring. It is well established that NO could easily adsorb on the C atom of g-C3N4 through free radical bonding. However, a single electron of the C atom was consumed by H after the doping of Fe. Therefore, Fe-doping can decrease the NO adsorption and, thus, inhibit the photocatalytic NO-removal.

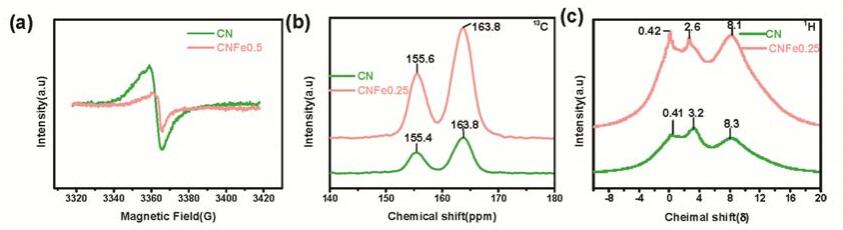

Fig. 9. (a) EPR spectra of CN and CNFe0.5; (b) the 13C spectra of CN and CNFe0.5; (c) the 1H spectra of CN and CNFe0.5.
4 Conclusions

In this study, we have demonstrated that the interaction with Fe(III) can be described as coordination doping with amino groups in CNFex, which has a great effect on photocatalytic oxidation and reduction. On the one hand, the RhB removal rate was enhanced because more OH was produced by the Fenton reaction. On the other hand, the Cr(VI)-removal efficiency was improved due to high yield of photogenerated electrons and O2. Furthermore, we studied the mechanism of poor NO removal rate caused by the Fe(III) doping. As a result, we found that the carbon of the triazine ring was the active site of NO removal, but it was passivated by the doping of Fe(III), thus reducing the NO removal activity of g-C3N4.
