Solar-driven water splitting is a promising approach to generate hydrogen fuels as a renewable clean energy, which alleviate the global energy crisis and environmental problem caused by fossil fuels [1-9]. However, the inherent sluggish kinetics of oxygen evolution reaction (OER) limits the efficiency of water splitting because the OER reaction proceed via a complex multistep proton-coupled electron transfer process [10]. Thus, OER is recognized as the bottleneck of water splitting. To improve the efficiency of water splitting, durable and highly efficient OER catalysts are required. Currently, the outstanding OER catalysts are mainly noble metals such as IrO₂ and RuO₂ [11, 12], but their high cost and scarcity severely limit the large scale application. To this end, considerable efforts have been made on the development of highly efficient and low-cost OER catalysts from earth-abundant transition metal.

Currently, various transition-metal-based OER catalysts have been developed as alternatives to noble metals catalysts, such as 3d transition metal oxides [13-18], oxyhydroxides, carbides [19, 20], phosphates [21], oxide perovskites [22, 23], layered double hydroxides [24-28], metal-organic frameworks [29-37], and molecular complexes [38-41]. Among these reported catalysts, cobalt based OER catalysts, especially, cobalt phosphates, have attracted increasing interest owning to their unique electronic structure [42-44]. Among these, cobalt phosphate (Co-Pi) from in-situ electrodeposition has been considered as one of the most efficient OER catalysts to date [44, 45]. The excellent OER performance of Co-Pi could be attributed to the Co oxo/hydroxo cluster consisting of cord-sharing [46]or edge-sharing CoO₆ octahedra identified by the extended X-ray absorption fine structure (EXAFS) spectrum [47]. The unidentified structure motifs could derive from its ill-defined amorphous structure. The amorphous materials make it more difficult to reveal the correlation between the local coordination geometry and the OER mechanism. By contrast, well-defined transition metal phosphates/phosphonates, featuring robust stability and displays versatile structures due to the presence of the flexible coordination of the phosphate groups, could provide a platform to understand the interplay between structure and properties [10]. Especially, recent studies demonstrated that the phosphate groups not only induce surface reorganization and stabilize the formed highly distorted polyhedral geometry of the metal center [48-51], but also tune the coordination geometry of metal center [48], and consequently affect the reaction pathway and regulate the OER catalytic activity [52]. Recently, we found that the OER activity also depended on the coordination geometry as well as the bond length of Co-O and Co-Co [10, 53, 54]. The compound with edge-sharing cobalt cluster exhibits higher activity than that with core-sharing ones [10]. However, only a few of cobalt-based phosphonates were developed as OER catalysts [10, 53-55]. Furthermore, most of reports mainly focus on the effect of the coordination geometry on OER activity. In contrast, only a class of shape-dependence in OER catalysis for metal phosphate was explored [56]. The study of the shape-dependence of the OER catalysis driven by metal-organic phosphonates still remains unexplored and has highly demanded.

Based on the above consideration, we herein report a facile hydrothermal synthesis of hierarchical nanostructured cobalt phenylphosphonate frameworks (CoP-X) via a structure-directing strategy (Scheme 1). The growth mechanism of different morphologies was tentatively proposed. These as-prepared cobalt phosphonates can be directly used as efficient OER catalysts under neutral conditions. Interestingly, the hierarchical flower (CoP-2) delivers a small overpotential of 393 mV at 1 mA cm^‒2 and a Tafel slope of 81 mV dec^‒1.

Cobalt nitrate hexahydrate (Co(NO₃)₂ 6H₂O, 98%), cobalt acetate tetrahydrate (Co(OAc)₂ 4H₂O, 98%), ammonium carbonate ((NH₄)₂CO₃, 98%), dipotassium hydrogenphosphate (K₂HPO₄, 99%), potassium phosphate monobasic (KH₂PO₄, 99.5%), ethanol (EtOH, AR) were provided by Sinopharm Chemical Reagent Co., Ltd. Phenylphosphinic acid (C₆H₇O₂P, 98%), polyvinylpyrrolidone (PVP, M_wt = 58000) was supplied by Shanghai Chemical Co. Ltd. Polyvinylpyrrolidone (PVP, M_wt = 40000), urea ((NH₂)₂CO, 98%), cobalt oxide (Co₃O₄) were purchased from Aladdin Reagent (Shanghai) Co. Ltd. All reagents were used as received without further purification.

A mixture of cobalt acetate tetrahydrate (0.024 g, 0.2 mmol) and phenylphosphinic acid (0.014 g, 0.1 mmol) was dissolved in 5 mL of H₂O. Then, the mixture was heated to 140 ℃ and kept for 48 h in a Teflon-lined autoclave. Pink powder (CoP-0) was obtained by washing with water and ethanol, then dried at 70 ℃ under vacuum.

Cobalt acetate tetrahydrate (0.024 g, 0.2 mmol) and phenylphosphinic acid (0.014 g, 0.1 mmol) were dissolved in 5 mL H₂O separately, then followed by adding the polyvinylpyrrolidone (0.1 g, M_wt = 40000) to the above mixture. After ultrasonication for 60 s, the sample were heated to 140 ℃ and kept for 48 h in a Teflon-lined autoclave. After cooling to room temperature, pink powder (CoP-1) was obtained and washed by ethanol and water, then was dried at 70 ℃ under vacuum.

Cobalt acetate tetrahydrate (0.024 g, 0.2 mmol) and phenylphosphinic acid (0.014 g, 0.1 mmol) were dissolved in 5 mL distilled water, respectively. Then these solutions were mixed in a Teflon-lined autoclave, followed by adding polyvinylpyrrolidone (0.1 g, M_wt = 58000) without ultrasonication and stirring. The resultant mixed solution was heated to 140 ℃ for 48 h. After cooling to room temperature, the pink polycrystals (CoP-2) were obtained by washing with ethanol and water.

Phenylphosphonic acid (0.014 g, 0.1 mmol), ammonium carbonate (0.01 g, 0.1 mmol), urea (0.015 g, 0.25 mmol), and cobalt nitrate hexahydrate (0.029 g, 0.1 mmol) were dissolved in 3, 2, 2, and 3 mL of distilled water, respectively. After that, the above solutions were mixed in a Teflon-lined autoclave, followed by adding 3 mL of ethylene glycol to the mixed solution. The mixture was heated to 140 ℃ for 24 h. After cooling to room temperature, the pink crystals were washed by ethanol and H₂O, then was dried at 70 ℃ under vacuum.

Field emission scanning electron microscopic (FESEM) images were obtained by a JSM6700-F instrument (Japan). The transmission electron microscopy and high-resolution transmission electron microscopy observations were performed on a transmission electron microscopy (TEM FEI, Tecnai G2 F20) with an accelerating voltage of 200 kV. Powder X-ray diffraction (XRD) patterns were recorded on a MiniFlexⅡ X-ray diffractometer with Cu K_α radiation (λ = 0.1524 nm) in the range of 3°–50° at a scan rate of 1° min^‒1. X-ray photoelectron spectroscopy (XPS) were collected using a Thermo Scientific ESCALAB 250Xi XPS. The binding energy was calibrated using the C 1s peak energy of 284.6 eV. Infrared spectra were recorded using a Bruker Vertex 70 Fourier-transform infrared spectroscopy (FT-IR) spectrometer over the range of 100–4000 cm^-1. The surface area (BET) of all samples were measured by N₂ adsorption and desorption at 77 K using a ASAP 2020 sorption system. The samples were degassed off line at 90 ℃ for 12 h under vacuum before the analysis.

Electrochemical measurements were performed a CHI 760E electrochemical workstation at room temperature (25 ℃). Platinum foil and Ag/AgCl (3 M KCl) were used as counter and reference electrode, respectively. The catalysts loaded on a rotating disk electrode (RDE) made of glassy carbon (5 mm in diameter, 0.196 cm²) was used working electrode. The prepared method of the catalyst ink is as follows: As-prepared sample of 5 mg and 8 μL of 5 wt% Nafion solution were dispersed in 500 μL of ethanol by ultrasonication for 5 min to form a homogeneous ink. Then, 6 μL of the ink was loaded onto a freshly polished working electrode made of glassy carbon (5 mm in diameter, 0.196 cm²), leading to the loading amount of ~0.30 mg cm^‒2. Before the data was collected, the working electrode was activated using 20 cyclic voltammetry (CV) scans from 0.397 to 1.397 V vs. NHE at room temperature at a scan rate of 100 mV s^‒1 with rotating rate of 1600 rpm. CV curves were obtained at a scan rate of 20 mV s^‒1 from 0.397 to 1.397 V vs. NHE. Linear scan voltammetry (LSV) was collected from 0.397 to 1.397 V vs. NHE with a scan rate of 5 mV s^‒1 in the neutral media with rotating rate of 1600 rpm. The impedance spectrum measurements were collected over a frequency range from 100 kHz to 0.1 Hz at the voltage of 1.267 V vs. NHE and the amplitude of the sinusoidal voltage of 5 mV, which was used to correct the Tafel plot for iR drop. Steady-state currents were collected at a variety of applied potentials starting at 1.187 V vs. NHE and proceeding in 10–20 mV steps to 1.257 V vs. NHE with rotating rate of 1600 rpm, which were used to obtain the Tafel slope. The Tafel plots of these samples were also collected from the steady state current data. According to the Tafel equation of η = blogj + a, which η is equal to the overpotential, b represents the Tafel slope, j corresponds to the current density, and a is constant. Overpotential η was calculated based on the η = (V_meas - iR) - E (pH = 7.0) (where V_meas is the measured potential at the 1 mA cm^‒2). In order to evaluate the stability, CV was cycled using a scan rate of 100 mV s^‒1 between a wide potential range from 0.4 to 1.5 V in 0.1 M phosphate buffer solution. At the end of the repeated CV experiments, LSV curves was recorded at a scan rate of 5 mV s^‒1 and chronoamperometry data were acquired at the potential of 1.297 V vs. NHE.

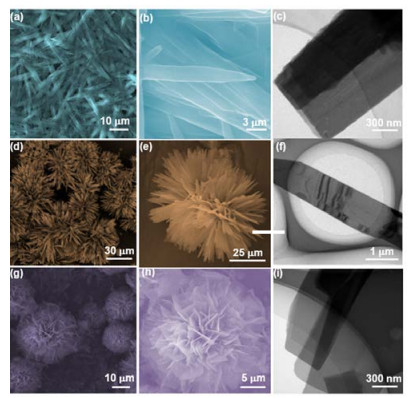

A structure-directing strategy was adopted to synthesize hierarchical structural metal organic phosphonates as illustrated in Scheme 1 and described in the Experimental section. The morphology and structure of CoP-X were investigated by FESEM and TEM (Fig. 1). In the presence of the low molecular weight of PVP (M_wt = 40000), thorn-shaped CoP-1 was obtained with the average length of 25.5 ± 0.5 μm, the width of 0.62 ± 0.03 μm, and the thickness of 44 ± 2 nm (Fig. 1(a)–(c)). When using the high molecular weight of PVP (M_wt = 58000), hierarchical thorn flowers (CoP-2) were observed with an average diameter of 65 ± 10 μm and the thorn thickness of 84 ± 4 nm (Fig. 1(d)–(f)). However, when the PVP was replaced by the mixture of ammonium carbonate and ethylene glycol, hierarchical nanosheet flowers (CoP-3) were obtained with an average diameter of 20 ± 10 μm and the nanosheet thickness of 286 ± 3 nm (Fig. 1(g)–(i)). These observations indicate that the shape of as-prepare cobalt phosphonates (CoP-X) depends on the used structure-directing reagent. The crystallographic structure of as-prepared sample was characterized by XRD (Fig. 2(a)). These diffraction peaks can be indexed to cobalt phenylphosphonate (Co(PhPO₃)(H₂O)) [57], which exhibits a layered structure consisting of inorganic layers of core-sharing CoO₆, and the dangling phenyl ring of phosphonic acid ligand in the interlay space. The chemical composition was further revealed. In the FT-IR spectra of CoP-X (Fig. 2(b)), the obvious peaks at 3466 cm^‒1 were assigned to the O–H stretching vibrations of water molecules, while 1608 cm^‒1 corresponds to the bending modes of water molecules. The stretching vibrations around 694 cm^‒1 were ascribed to the C–H out-of-plane bends of the monosubstituted phenyl rings. The peaks which from 900 to 1142 cm^‒1 were attributed to the bending modes of the tetrahedral CPO₃ group [58]. The bands below 900 cm^‒1 could be associated with Co–O stretching vibrations [59]. The valence state and chemical composition of CoP-X were identified by XPS. XPS survey spectra of CoP-X revealed that they possess identical components besides CoP-0 with undetectable N peak (Fig. 2(c)). This observation was consistent with the fact that CoP-0 was prepared without utilization of nitrogen-containing reagent. The high-resolution Co 2p spectra shows two core-level signals located at 780.5 and 796.2 eV together with two strong satellite peaks at 785.0 and 801.7 eV (Fig. 2(d)), indicating the Co species present an oxidation state of +2 in the as-prepared CoP-X [45]. In the P regions, the P 2p spectrum can be deconvoluted into two peaks at 131.4 and 132.3 eV (Fig. S1), corresponding to the binding energies of phosphorus in the C–P and P–O bonds, respectively [53]. These results demonstrate that as-prepared samples have the same chemical composition and crystal structure, despite morphological differences.

To understand the growth process of these morphologies, the possible mechanism was tentatively explored. It was well-known that polyvinylpyrrolidone (PVP) as a class of non-ionic polymer with C=O and C–N functional group. It has a hydrophilic pyrrolidone and a hydrophobic alkyl chain, and thus was also classified as a non-ionic amphiphile, which was widely used as a stabilizing and structure-directing reagent for the synthesis of metal nanoparticles [60]. Our results showed that PVP can induce the formation of CoP with different shapes, which depends on the molecular weight of PVP. Increasing or decreasing the molecular weight will result in the change in morphology from thorn-like sheet to hierarchical thorn flower. When using low molecular weight of PVP, PVP acts as a surface protecting reagent which prevents the sheets from agglomerating together via the interactions of cobalt centers and the functional groups (N and O) of PVP to induce the form of uniform thorn-shaped aggregations (CoP-1). Furthermore, no further change in morphology was observed when the reaction time was extended. By contrast, in the absence of PVP, irregular plate-like morphology (CoP-0) were observed (Fig. S2), indicating the ability to disperse material of PVP [61]. Upon further increasing the molecular weight to PVP (M_wt = 58000), thorn-like nanostructures with length of about 30 μm were gradually agglomerated into bowie-shaped aggregations and finally were merged into hierarchical flower-like composites (CoP-2). These evolutions could be attributed to increasing the number of hydroxyl groups available as increasing the molecular weight of PVP, which fasten the growth via the hydrogen-bonding interactions at the surface of these thorns. Therefore, the strong interaction of adsorbed PVP molecules could induce material aggregation [62], which lead to various crystal planes of restricted growth. To further investigate the effect of hydroxyl group on the morphology, we introduce ethylene glycol (EG) as structure-directing reagent substituting for PVP to construct CoP-3. Compared with PVP, EG has higher content of hydroxyl group and shorter hydrophobic chain. The addition of urea and ammonium carbonate to the solution, while keeping the same reaction condition as that of CoP-2, results in the formation of ultrathin nanosheets. These nanosheet gradually growth into uniform hierarchical flowers (CoP-3). These observations further suggest that the number of hydroxyl group could play a crucial role in tuning the morphology. Meanwhile, this result also suggests that urea was an important contributor to synthesize such ordered nanosheet substructure in the CoP-3. In that case, urea could be decomposed to carbon dioxide and ammonia that gradually increasing basicity, which facilitate the assembling of pristine nanosheets and lead to the growth of hierarchical structure. However, the exact role of how urea regulates the morphology still needs to be further studied.

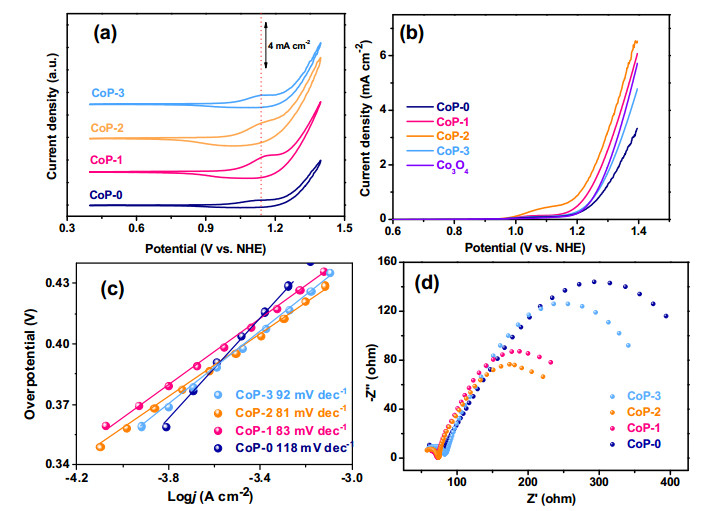

The water oxidation catalytic properties of CoP-X were performed in 0.1 M phosphate buffer solution (pH = 7.0) with a rotating disk electrode (RDE). For comparison, the catalytic properties of Co₃O₄ were also investigated. Before at the start of collected data, 40 CV cycles at a scan rate of 100 mV s^-1 from 0.397 to 1.397 V vs. NHE were performed. After 40 CV sweeps, CV curves of all the samples were collected in 0.1 M phosphate buffer solution in the potential range from 0.397 to 1.397 V vs. NHE at a scan rate of 20 mV s^-1 (Fig. 3(a)). CV curves exhibit a small peak at 1.13 V vs. NHE followed by onset of water oxidation at ~1.2 V vs. NHE. The peak at 1.13 V can be assigned to the Co(II)/Co(III or IV) transitions [10]. On the basis of CV results, the activities increase in the order of CoP-2 > CoP-1 > CoP-3 > CoP-0. Further, iR-corrected LSV curves of CoP-X and Co₃O₄ were collected from 0.397 to 1.397 V vs. NHE (Fig. 3(b)). This result demonstrates that CoP-2 exhibits the highest activity with an overpotential of 393 mV required to reach a current density of 1 mA cm^‒2 among these as-prepared samples, though these samples present similar onset potential of~373 mV. It was worth noting that in neutral media water oxidation, the overpotentials were in general evaluated at a current density of 1 mA cm^‒2 [45]. Furthermore, CoP-2 displays a current density of 6.53 mA cm^‒2 at 1.39 V vs. NHE, which was significantly higher than those of CoP-1 (6.02 mA cm^‒2), CoP-3 (4.74 mA cm^‒2), and CoP-0 (3.30 mA cm^‒2). Also, the value was higher than that of the classical water oxidation catalyst Co₃O₄ (5.71 mA cm^‒2). As shown in Fig. S4, the Co₃O₄ shows similar onset potential to CoP-X but high overpotential of 443 mV at a current density of 1 mA cm^‒2. The superior catalytic activity of CoP-2 was also comparable to those of cobalt-based catalysts reported (Table S2). For example, Co-Pi catalyst reaches the current density of 1 mA cm^‒2 required the overpotential of 410 mV in 0.1 M phosphate buffer solution at pH = 7 [45]. The catalytic activity of CoP-X was further confirmed by the Tafel slope (Fig. 3(c)). The Tafel slopes of CoP-1, CoP-2, CoP-3 were determined to be 83, 81, and 92 mV dec^‒1, respectively, indicating CoP-2 possessed the smallest Tafel slope among these as-prepared samples. The faster electron transfer kinetics of CoP-2 due to the lower Tafel slopes. To verify this speculation, the EIS measurement was conducted. As shown in Fig. 3(d), the Nyquist plot of CoP-2 showed the smallest semicircle among CoP-X samples, demonstrating the faster electron/mass transfer in the CoP-2. However, the collected Tafel slopes were deviate from 2.3 × RT/F, typically value should be 60–80 mV dec^‒1, which associated with an one electron-transfer step followed by the rate-determining step [48, 53]. Moreover, the mass transport limitation also could cause the deviate from 2.3 × RT/F of Tafel slopes [10]. Additionally, the double layer capacitances (C_dl) were measured by different scan rate under a potential range from 0.697 to 0.797 V vs. NHE, which to estimate the electrochemically active surface area (ECSA). The result showed in Figs. S7 and S8, and Table S1, the CoP-2 enjoyed the highest C_dl of 0.887 mF cm^‒2, which overtopped CoP-1 (0.517 mF cm^‒2), CoP-3 (0.446 mF cm^‒2), and CoP-0 (0.247 mF cm^‒2). Furthermore, BET surface area of CoP-X samples (Fig. S9) had the same trend with C_dl, that CoP-2 possessed the largest BET surface area of 22.0821 m² g^‒1, followed by CoP-1 (21.7925 m² g^‒1), CoP-3 (14.7042 m² g^‒1), and CoP-0 (10.2578 m² g^‒1). To explore the intrinsic activity of CoP-X samples, the polarization curves were normalized by the ECSA. As showed in Fig. S10, no significant difference between four samples, and CoP-2 cannot perform as perfect as non-normalized, which indicating the slight difference of intrinsic activity between four sample, and the excellent OER performance of CoP-2 could be attributed to the largest BET surface area and ECSA [63].

The stability of CoP-X was also investigated. As shown in Fig. S5, the activity of CoP-X displays a small loss after 80 CV cycles in the potential range from 0.397 to 1.397 V vs. NHE, indicating their high stability during the OER process. The slightly loss of the OER activity could be due to the catalysts falling off from the electrode. The durability of CoP-X was further evaluated by chronoamperometric measurements at 1.297 V vs. NHE (Fig. S6). The result indicates that the current densities of CoP-X remain nearly unchanged, but CoP-2 presents a higher current density than those of CoP-1 and CoP-3. All of the above results signified that CoP-2 was a stable and efficient OER catalysts. In addition, the XPS, XRD, TEM and FT-IR of CoP-2 after stability test were measured to explore the transform during OER process. In Fig. S11(a), the negative shift of binding energy about 1.2 eV for Co 2p_3/2 and 1.7 eV for Co 2p_1/2, the new peaks assigned to Co³⁺ which emerged at 779.8 and 794.8 eV, indicating the rising oxidation state of Co in CoP-2 during OER process [64]. In contrary, the P 2p spectra of CoP-2 after OER measurement (Fig. S11(b)) move to the higher binding energy (from 131.4 to 131.7 eV), indicating the electronic interaction between Co and P. There were no obvious diffraction peaks observed for CoP-2 after OER test (Fig. S12), suggesting the formation of high valence cobaltic amorphous phase. High-resolution TEM (HRTEM) and the corresponding fast Fourier transformation (FFT) also showed the amorphous nature of CoP-2 after OER test which cannot observed any lattice fringes (Fig. S3). In the FT-IR spectra of CoP-2 after OER test (Fig. S13), no significant change indicating the structure of phosphate groups were maintained.

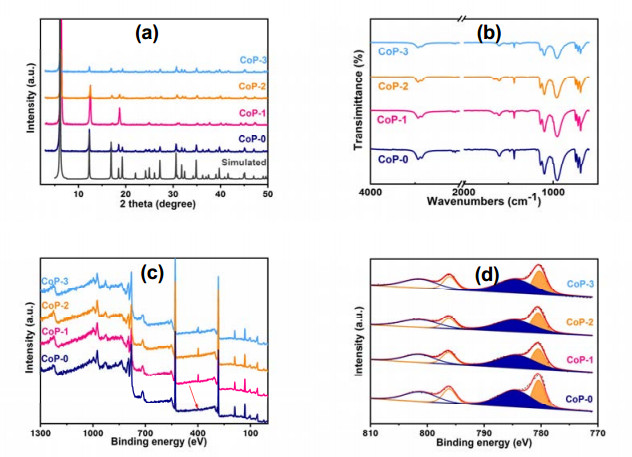

The high OER performance could be attributed to the phosphonic group which was helpful for the adsorption of water molecules at the surface of electrode. Meanwhile, phosphonate group not only serves as proton acceptors that facilitate the oxidation of Co atoms but also can stabilize the intermediates that promote the water oxidation [50]. In addition, their nanosheet/thorn-like substructure were considered to be an unique advantage for quickly removing the generated bubbles at the surface of electrode [65]. Moreover, the crystalline structure contributes to electron transfer, thus facilitating the OER process. However, the difference of performance was related to their morphology as possible, structure and chemical composition. A combination of XRD, IR, and XPS measurements revealed that they possess nearly identical structure, composition and oxidation state, signifying that the activity could be associated with the morphology. The thinker plates of CoP-0 not only reduce the specific surface area of catalytic sites but also increase the charge transfer resistance as revealed by the impedance spectrum, leading to poor OER performance. In contrast, the thin thorn of CoP-1 was beneficial for the charge transfer at the catalysts/electrolyte interface. In particular, three-dimensional (3D) hierarchical flower-like CoP-2 consisting of thin thorn provides more efficient charge transfer pathways and more exposed accessible surface-active sites. Furthermore, the 3D hierarchical structure can prevent the aggregation of 2D thorn and facilitates the permeation and electrolyte diffusion during OER. However, the thick nanosheet in CoP-3 to some extend affect the charge transfer and lead to inferior performance. The superior OER performance of CoP-2 could be attributed to the synergistic effect of fast charge transfer, increased surface-active sites, and efficient mass transport.

In summary, we have developed a structure-directing strategy to prepare three different hierarchical structural cobalt phenylphosphonates. The self-assembly mechanism has been studied and it was found that their morphology depended on the number of hydroxyl group of the structure-directing reagent. By introduction of high molecular weight PVP, 3D flower-like aggregations with thin nanothorn was obtained. The 3D hierarchical structure provides some attractive advantages for electrochemical water oxidation, including efficient charge transfer, increased accessible surface-active sites, and a short diffusion distance. As a result, the hierarchical cobalt phosphonate nanothorn flower presents a small overpotential of 393 mV to catalyze OER with a Tafel slope of 81 mV dec^‒1 in neutral pH. This work offers a new strategy to develop metal phosphonate/phosphates as high-performance catalysts for OER.
